Product Description:

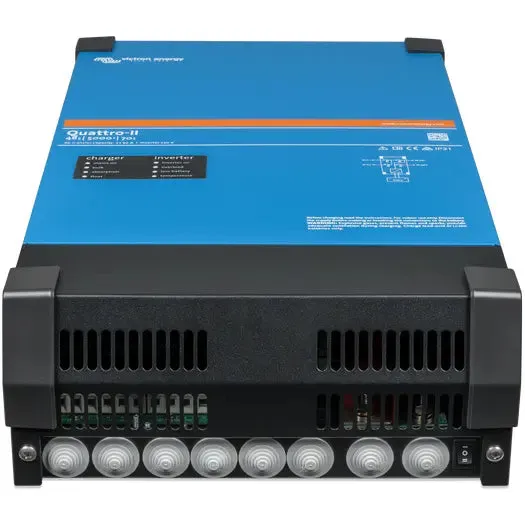

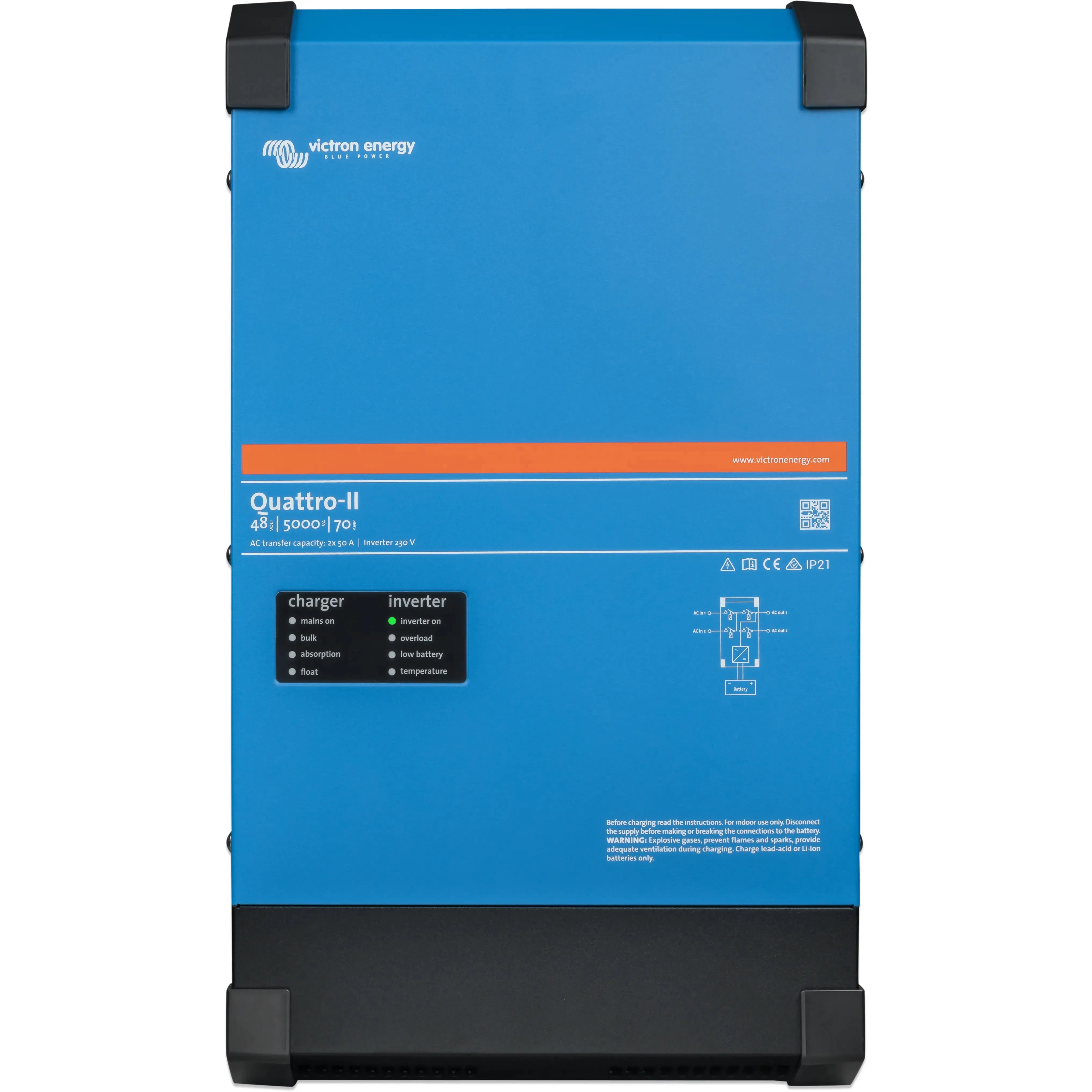

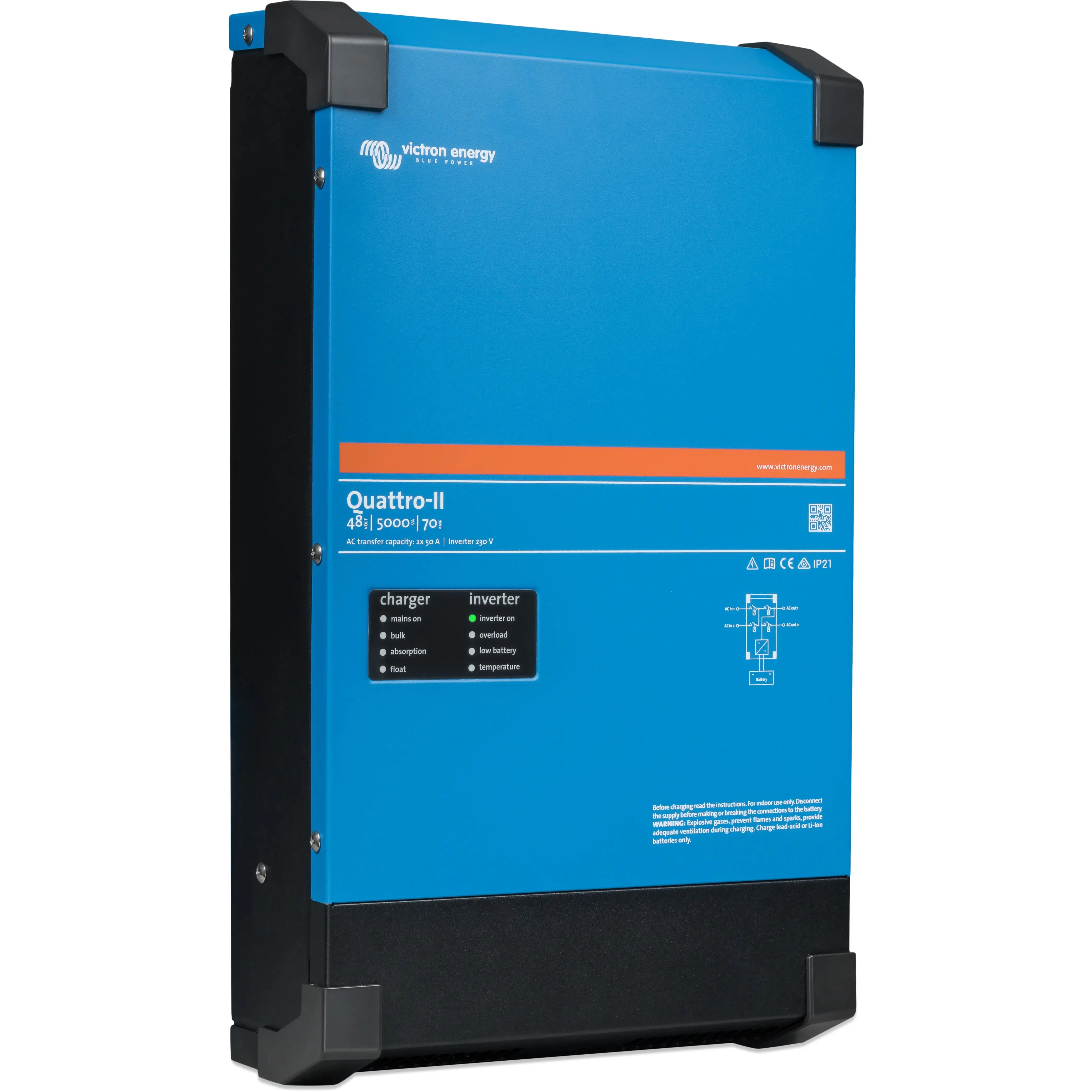

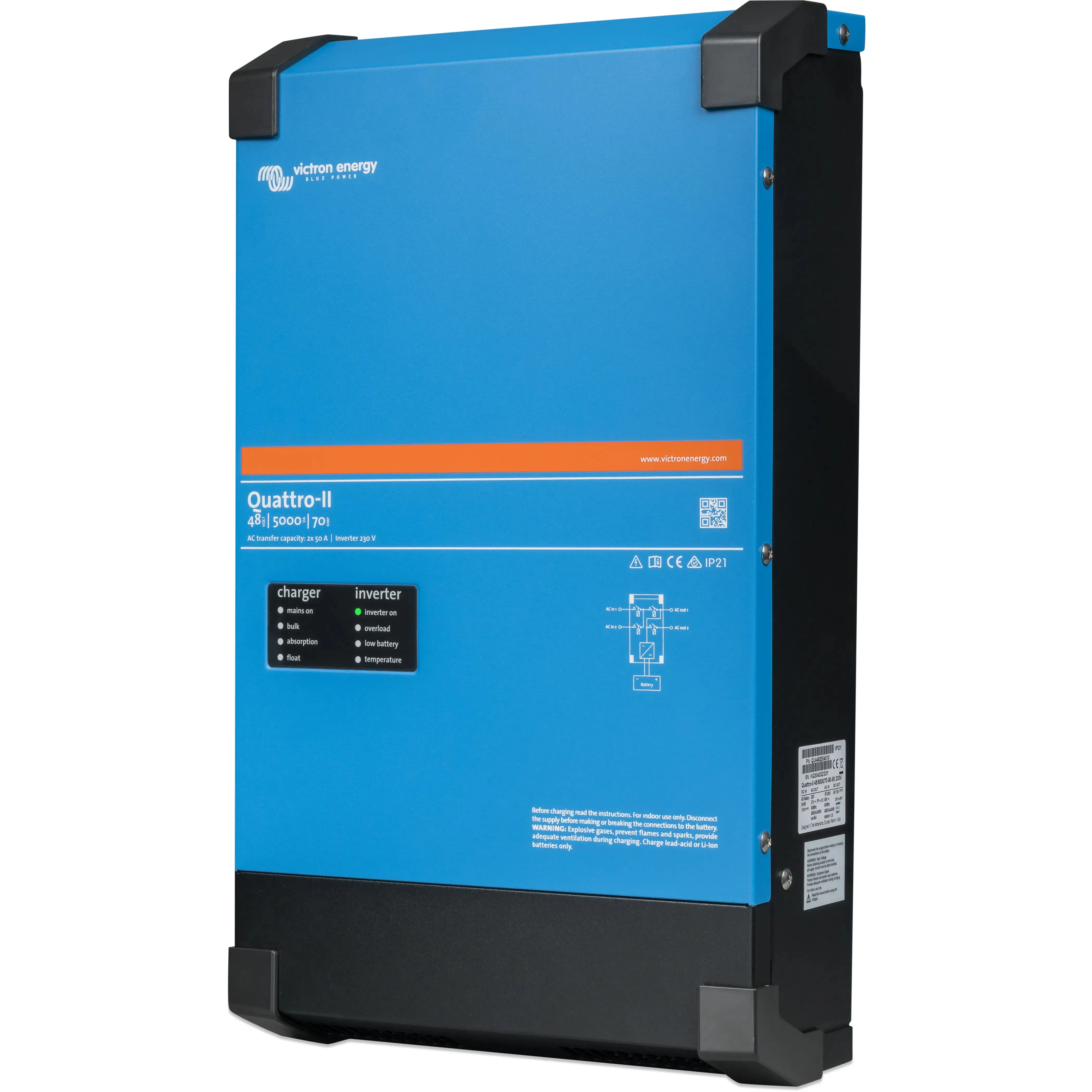

The Victron Quattro-II 48/5000/70-50/50 230V is a high-performance inverter and charger that is designed to provide reliable and efficient power in a range of applications. This device is capable of converting DC power from a battery bank into AC power that can be used to power a range of electrical devices, while also providing a powerful charging capability to keep your batteries topped up.
Featuring a rugged construction and a range of advanced features, the Quattro-II 48/5000/70-50/50 230V is an excellent choice for anyone looking for a reliable and efficient inverter and charger.
Specs
| Specification | Value |
|---|---|
| Inverter Power Output | 5000W |
| Nominal Battery Voltage | 48V |
| Output Voltage | 230VAC |
| Frequency | 50Hz/60Hz (auto-detection) |
| Output Waveform | Pure Sine Wave |
| Maximum Efficiency | >95% |
| Zero-Load Power Draw | <15W |
| Maximum Continuous RMS Current | 21.7A |
| Peak Efficiency | 94% |
| Charger Power | 50A (at 48V) |
| AC Input Voltage Range | 170-265VAC (adjustable) |
| AC Input Frequency | 45Hz - 65Hz |
| Battery Voltage Range | 38-66V |
| Charger Algorithm | Adaptive 4-stage charge |
| Transfer Time | <20 milliseconds |
| Communication Ports | VE.Bus |
| Monitoring and Control | GX device |
| Cooling | Temperature-controlled fan |
| Operating Temperature Range | -40°C to 65°C (-40°F to 149°F) |
| Certifications | CE, RoHS |
Features:
- High power output: The Quattro-II 48/5000/70-50/50 230V can deliver a continuous output power of 5000W, with a peak power output of 10,000W for short periods.
- Pure sine wave output: The device produces a high-quality pure sine wave output, ensuring that your electrical devices run smoothly and efficiently.
- Advanced charging capability: The device features a powerful charging capability, with a maximum charge current of 70A, enabling it to keep your batteries topped up quickly and efficiently.
- VE.Bus communication port: The device features a VE.Bus communication port, enabling it to be connected to other VE.Bus-compatible devices for advanced system integration and monitoring.
- Multiple protection features: The Quattro-II 48/5000/70-50/50 230V features comprehensive protection against overvoltage, undervoltage, overtemperature, and short circuits, ensuring safe and reliable operation in all conditions.
- Efficient operation: The device is designed to be highly efficient, with a peak efficiency of up to 95%.
- Easy to use: The device is easy to install and operate, with a simple and intuitive user interface and easy-to-follow instructions.
- Durable construction: The Quattro-II 48/5000/70-50/50 230V is built to last, with a rugged construction that is designed to withstand the demands of daily use.
Whether you need a reliable inverter and charger for your off-grid power system, backup power system, or mobile application, the Quattro-II 48/5000/70-50/50 230V is an excellent choice. With its high power output, advanced charging capability, and comprehensive protection features, this device is sure to provide reliable and efficient power for your electrical devices and keep your batteries topped up for years to come.
