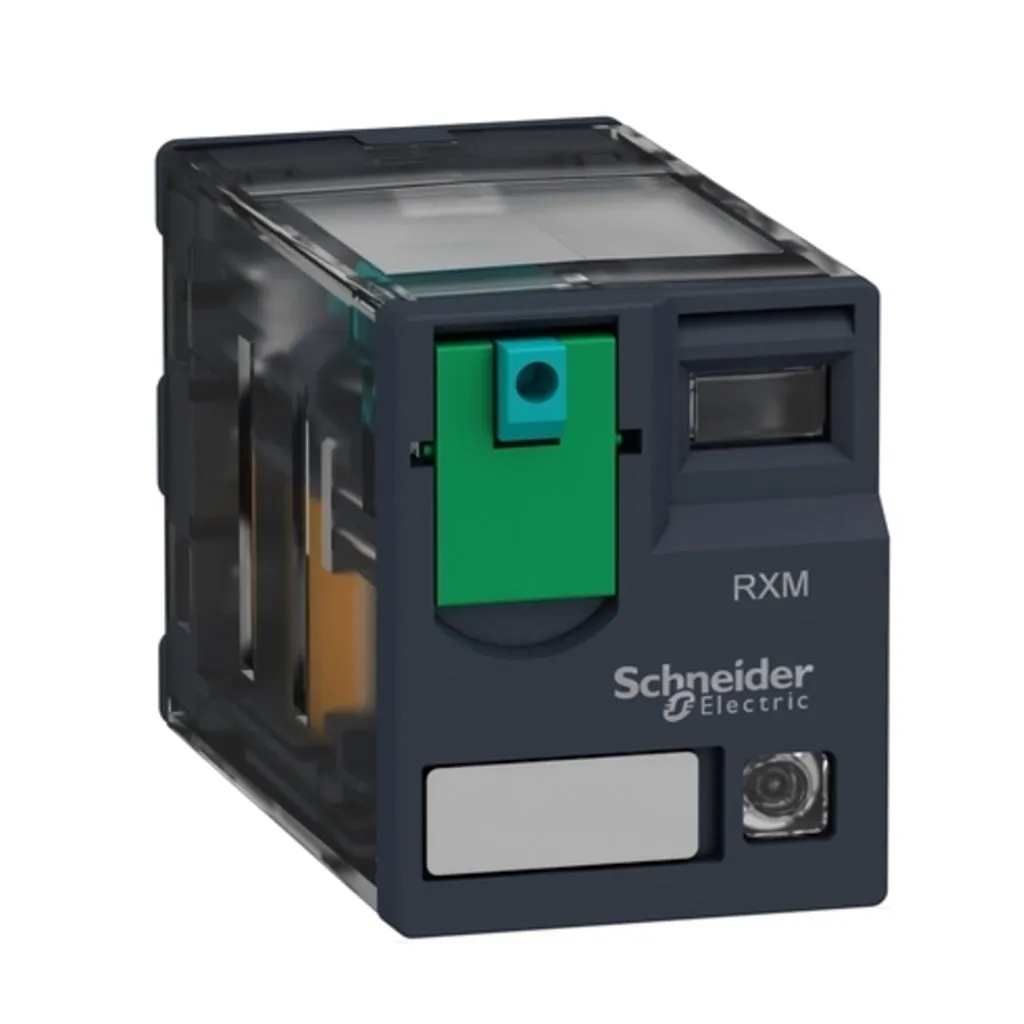

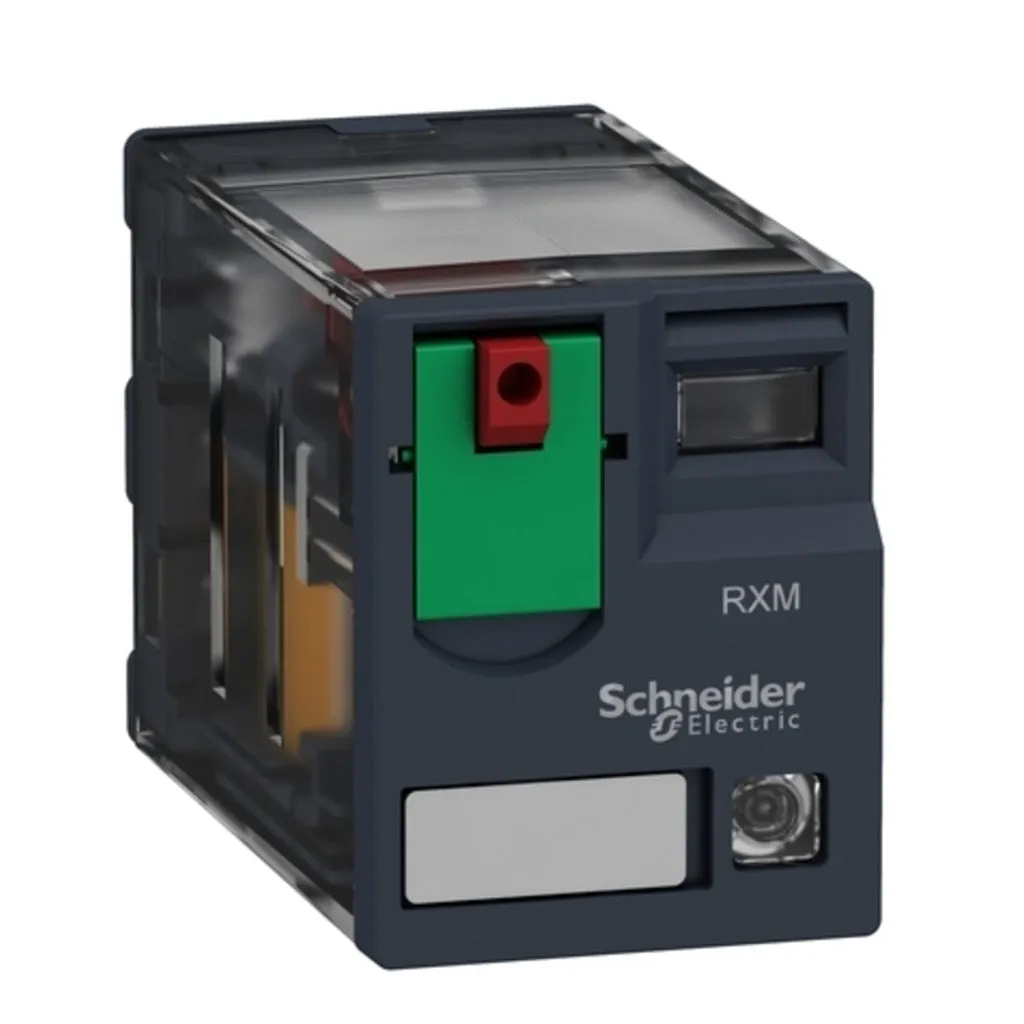

Product Specification
|
Brand |
Schneider |
|
Model Name |
Zelio |
|
Product Code | Control Circuit Voltage |
RXM3AB2JD | 12 V DC RXM3AB2B7 | 24 V AC RXM3AB2BD | 24 V DC RXM3AB2E7 | 48 V AC RXM3AB2ED | 48 V DC RXM3AB2FD | 110 V DC RXM3AB2F7 | 120 V AC RXM3AB2P7 | 230 V AC |
|
Product Type |
Plug In Miniature Relays |
|
Series Name |
Miniature |
|
Device Short Name |
RXM |
|
Description |
3 Change Over - 10 AMPS Contact Rating |
|
Current Rating |
10 A |
|
Contacts Type And Composition |
3 C/O |
|
Utilisation Coefficient |
20 % |
|
Status LED |
With |
|
Control Type |
Lockable Test Button |
|
Shape Of Pin |
Flat |
|
Mechanical Durability |
10000000 cycles |
|
Maximum Switching Voltage |
250 V Conforming To IEC |
|
Operating Position |
Any Position |
|
Product Weight |
0.096 Kg |
|
Warranty |
As Per Manufacturer Terms And Condition |
