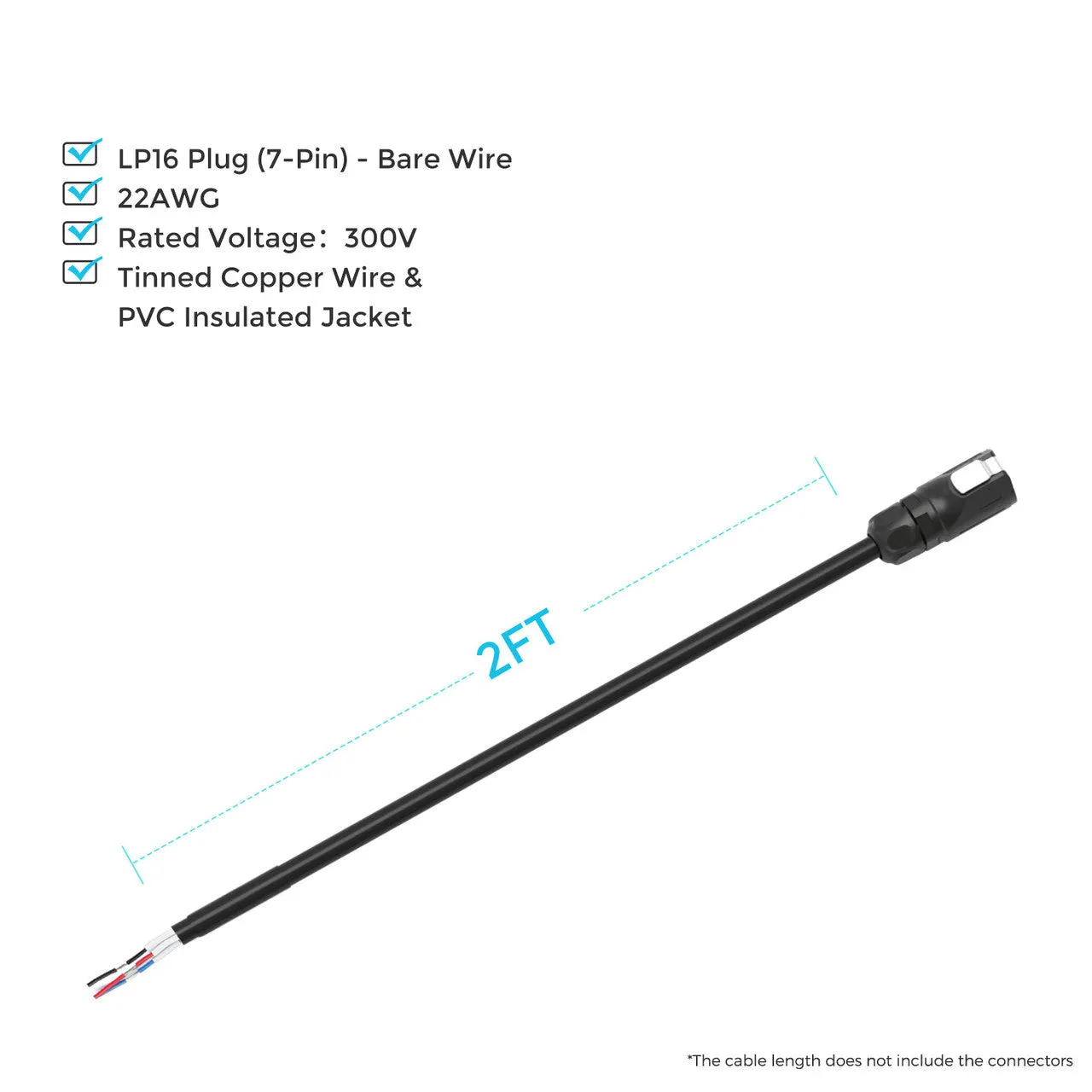

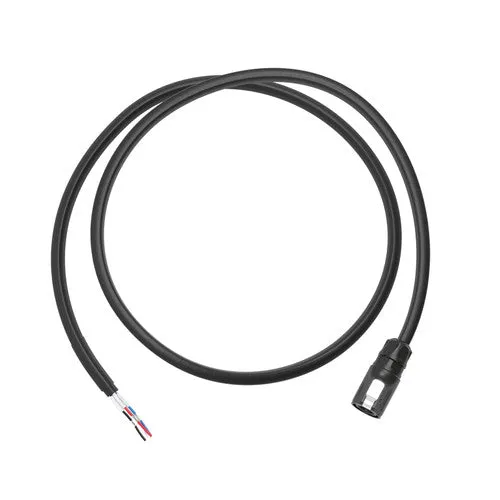

Renogy LP16 Plug (7-Pin) to Bare Wire 2Ft Communication Cable

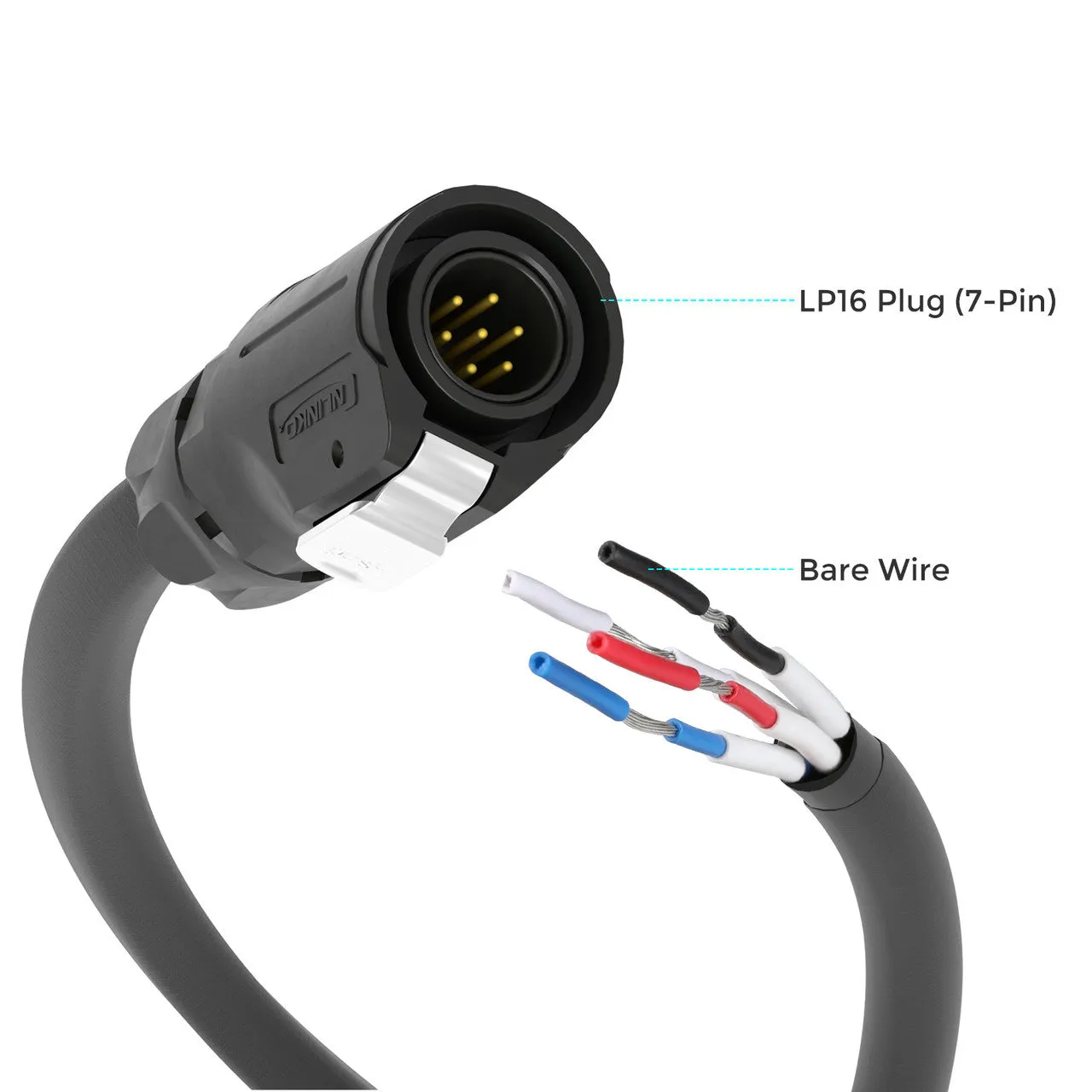

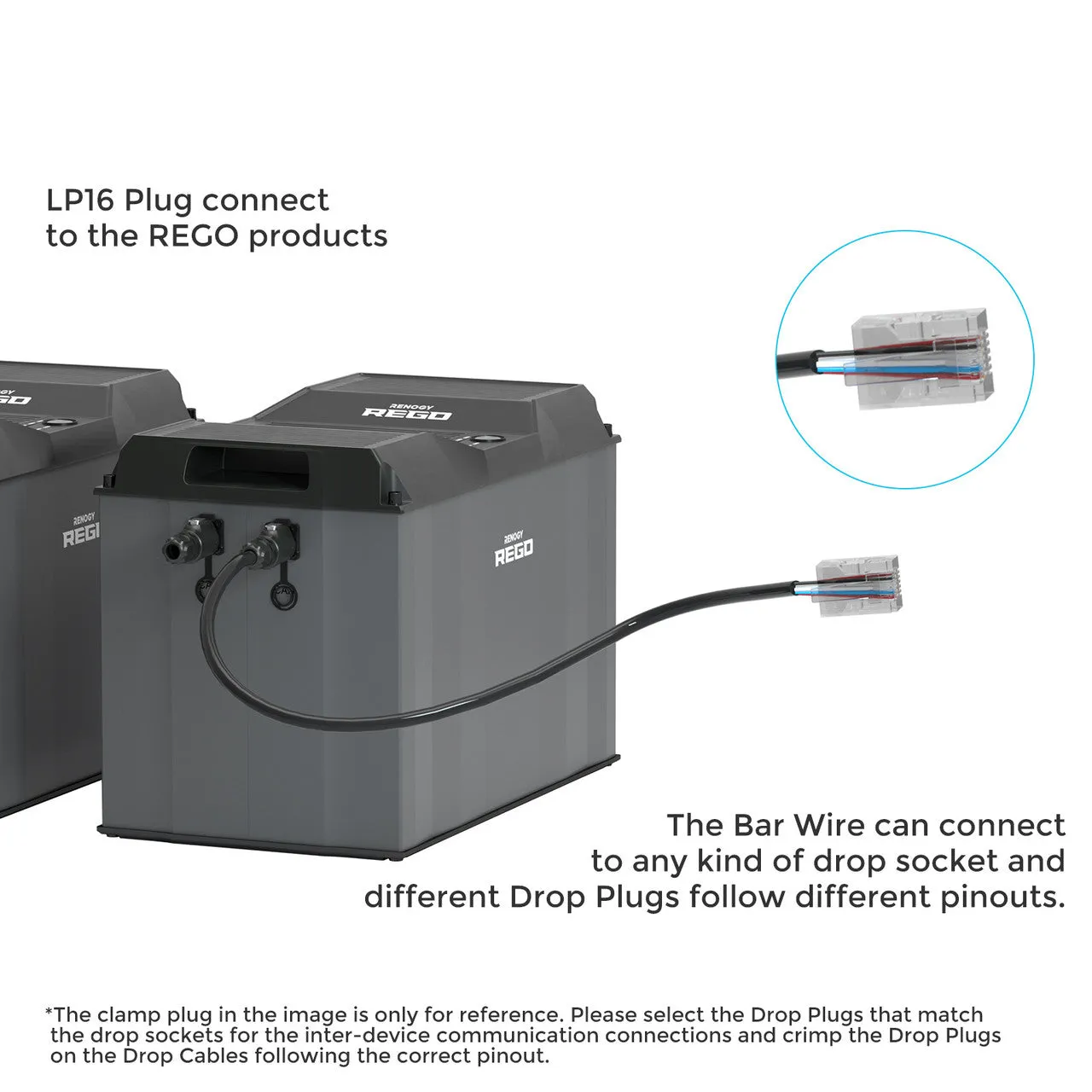

Renogy LP16 Plug (7-Pin) to Bare Wire is a customizable 2Ft communication cable tailor-made to connect Renogy REGO series products with the RV-C bus in your RV. While a 7-pin LP16 connector on the end of this inter-communication cable connects to the CAN terminal of your REGO products, the other end is a bare wire which you can crimp to for any appropriate connector that matches the RV-C bus.
Connectivity between the REGO devices allows the entire energy system to dynamically adapt the charging profile for optimal and safe charging. A reliable communication cable, Renogy allows safe operation, smart control, remote monitoring and programmable settings with this high-performance LP16 Plug.
Specifications:
Length: 2ft
Wire Gauge: 22AWG*3P 1C
Rated Voltage: 300V
Baud Rate: ＞250kbps
Cable Material: Tinned Copper Wire & PVC Insulated Jacket
Terminal Type/Size: LP16 Plug (7-Pin) - Bare Wire
Temperature Rating: 80℃/176℉
Warranty: 1 Year
What's in the Box:
1 x LP16 Plug (7-Pin) to Bare Wire
1 x User Manual
