Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Application | Data Acquisition ; Energy Management ; Industrial Automation ; Monitoring |
| Connection to Host | Backplane |
| Depth | 0.197" (5mm) |
| Dimensions | 82.55 x 18.29 x 90.17 mm |
| For Use With | SNAP PAC Brain ; R-Series Controllers |
| Input | -20 to 20 mA |
| Input Current | 200 mA |
| Input Type | Analog |
| Isolation Voltage | 4000/1500 V |
| Length | 3.25" (82.55mm) |
| Maximum Operating Temperature | 70 °C |
| Minimum Operating Temperature | 0 °C |
| Module Type | Input |
| Mounting Type | 5 Pin I/O Mounting Board |
| Number of Channels | 2 |
| Number of I/O Ports | 2 |
| Number of Inputs | 2 Input |
| Operating Temperature | 0 to 70 °C |
| Primary Type | Control |

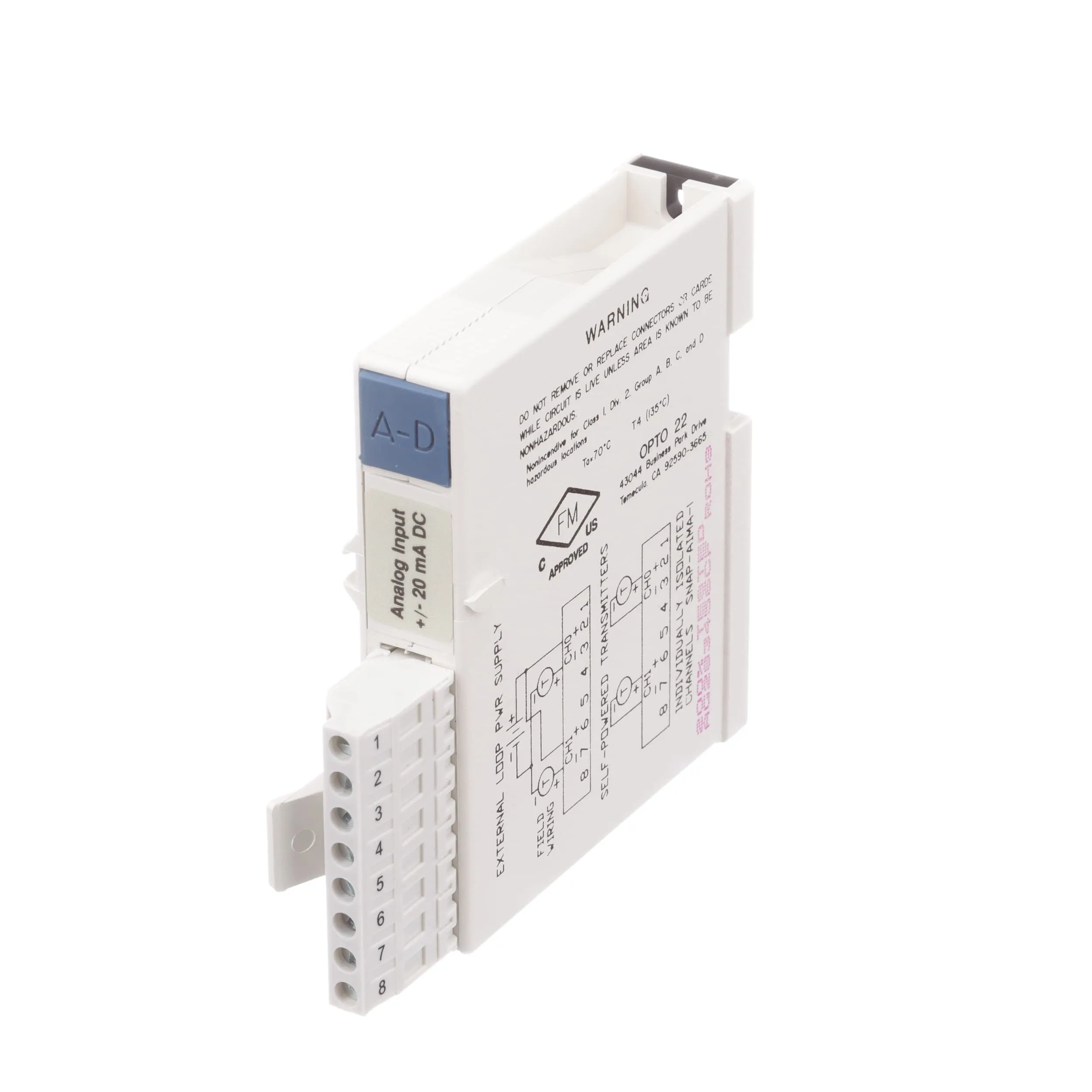

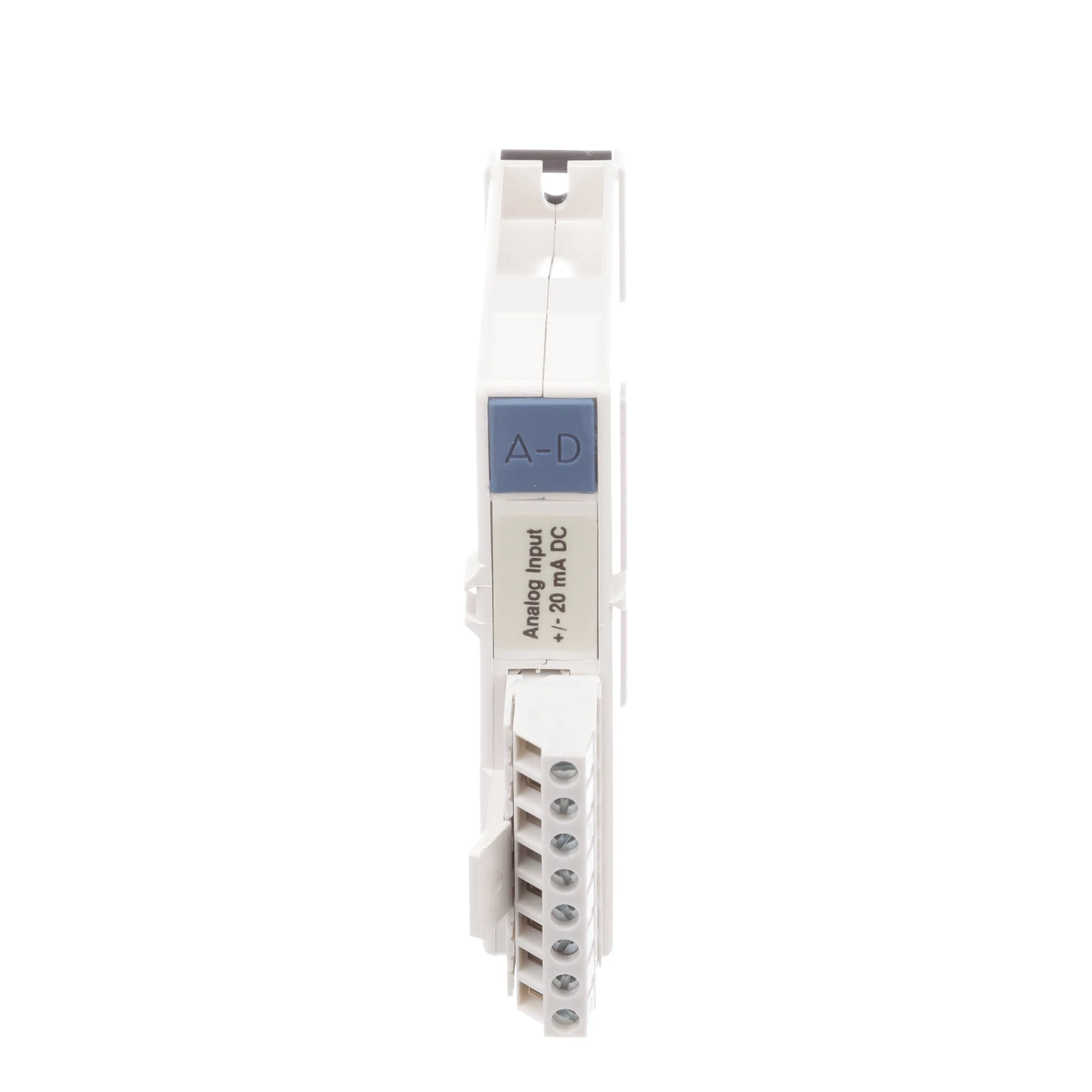

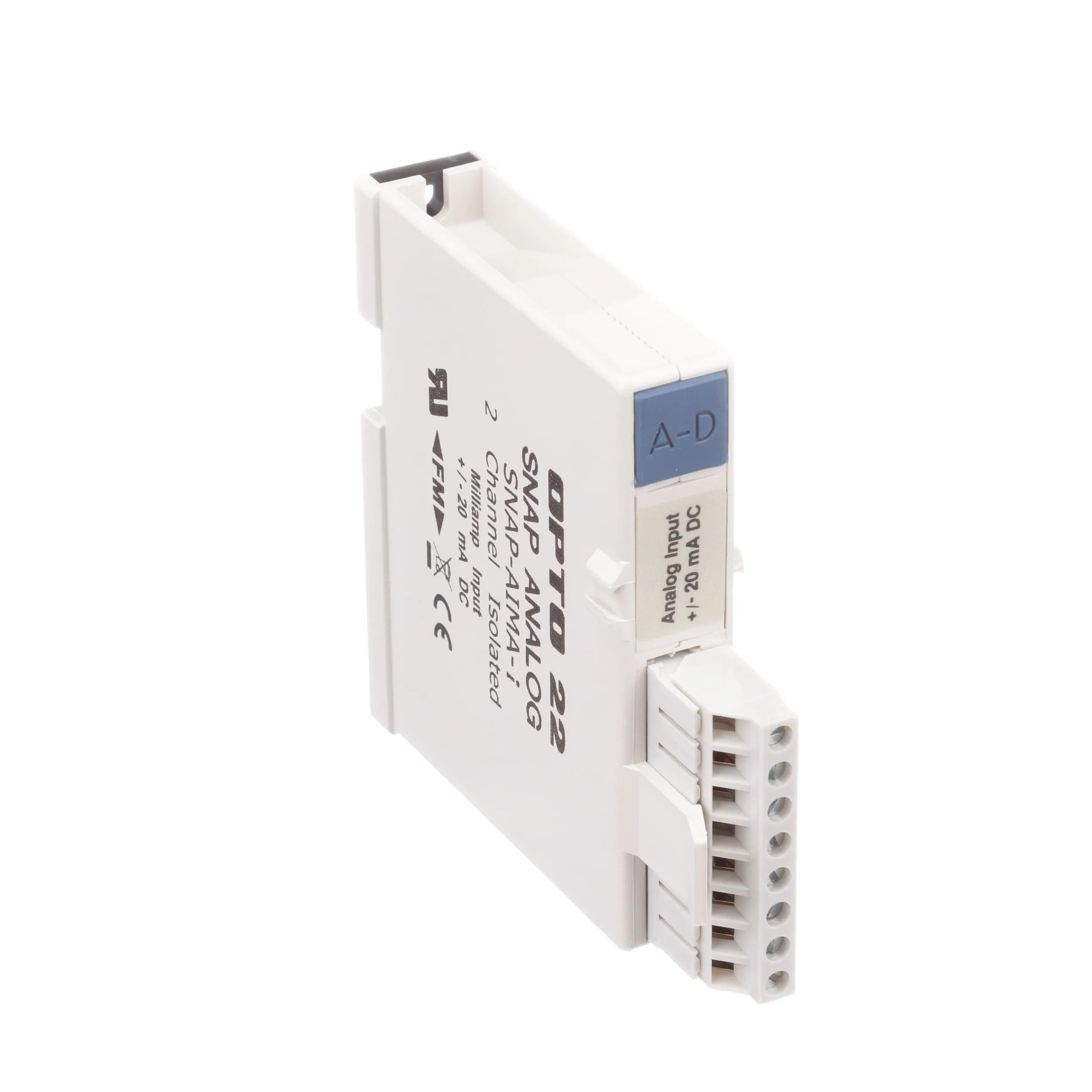

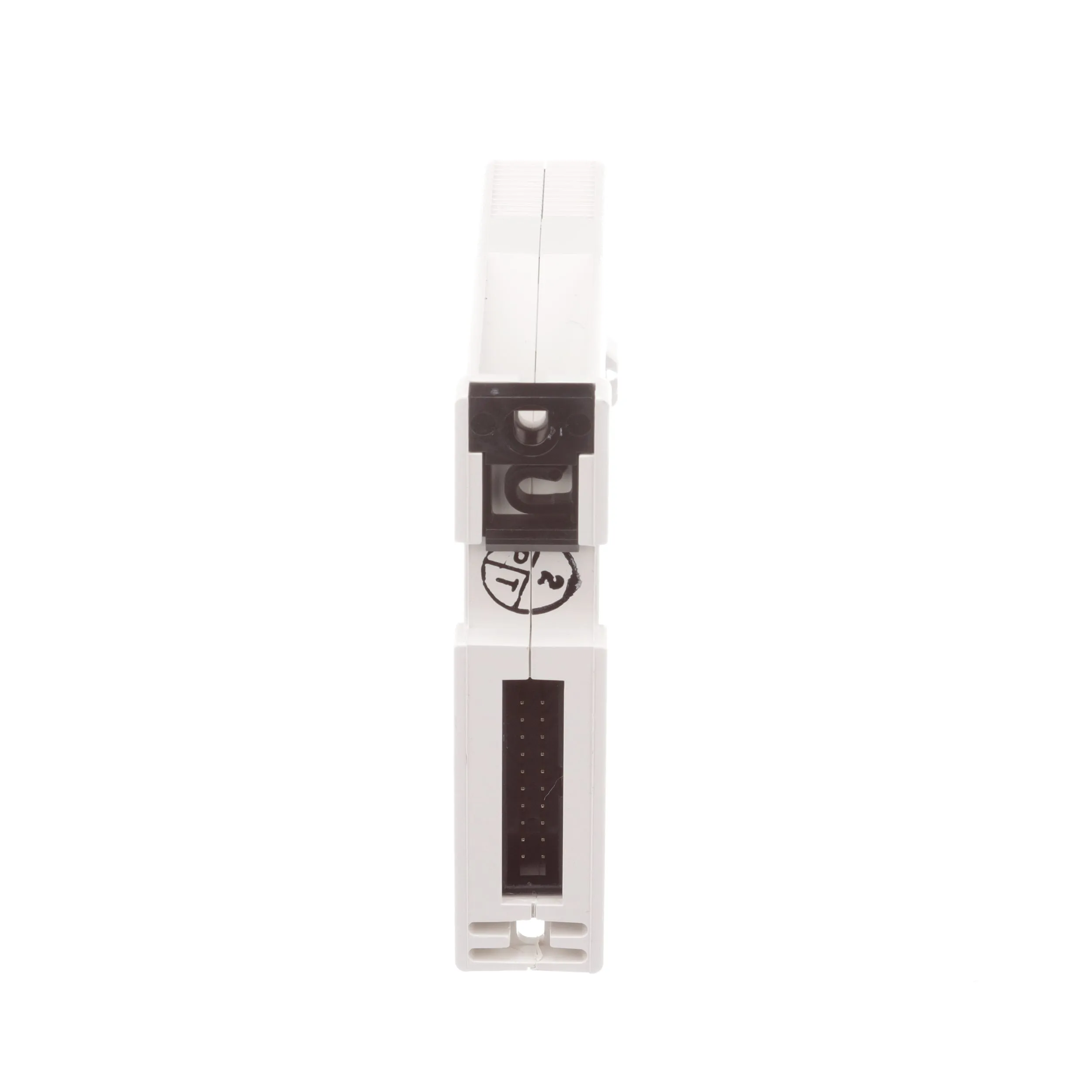

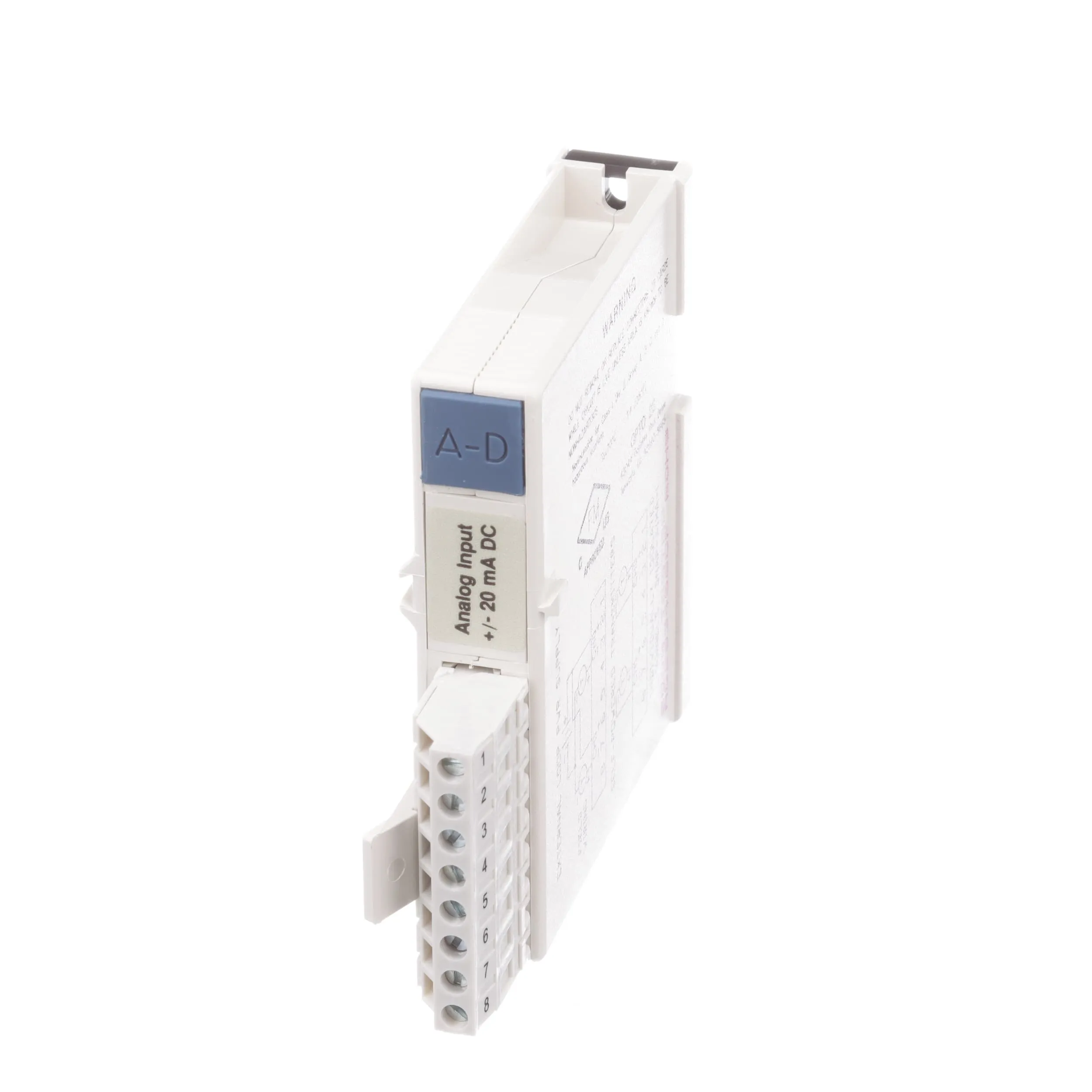

| Product Header | SNAP Isolated Analog Input Module |
| Resistance, Input | 200 Ohms |
| Response Time | 10 ms |
| Series | |
| Special Features | Optical Isolation ; Transformer Isolation |
| Standards | UL, CSA, CE Certified |
| Supply Voltage | 5 VDC |
| Temperature Operating Range | 0 to 70 °C |
| Time, Response | 10 ms |
| Type | Input |
| Width | 0.72" (18.29mm) |
Overview
SNAP I/O modules provide compact, high-density packaging for analog, digital and serial I/O. SNAP I/O includes AC and DC digital modules; current and voltage analog input and output modules; temperature and thermocouple, time-proportional output, power, load cell and rate modules; and modules for communication with serial devices.
