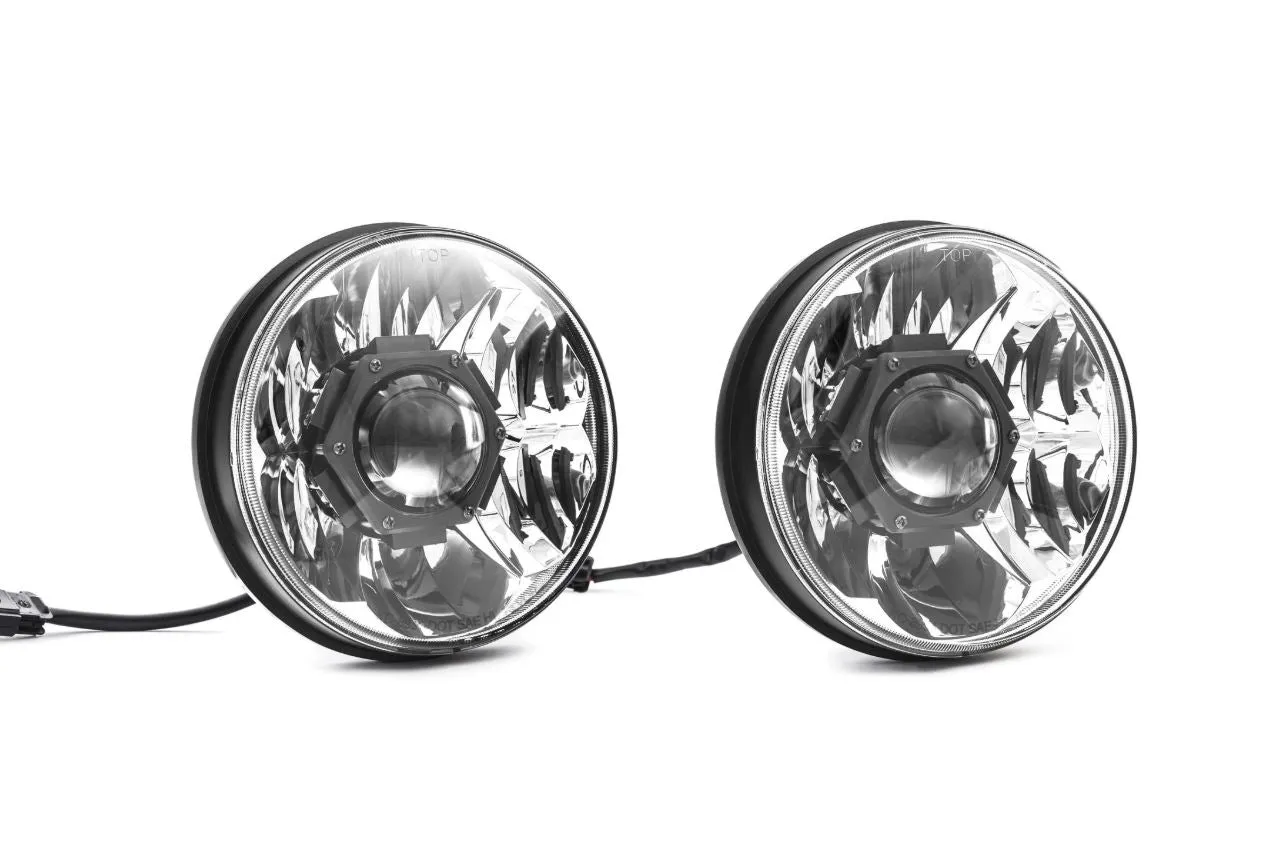

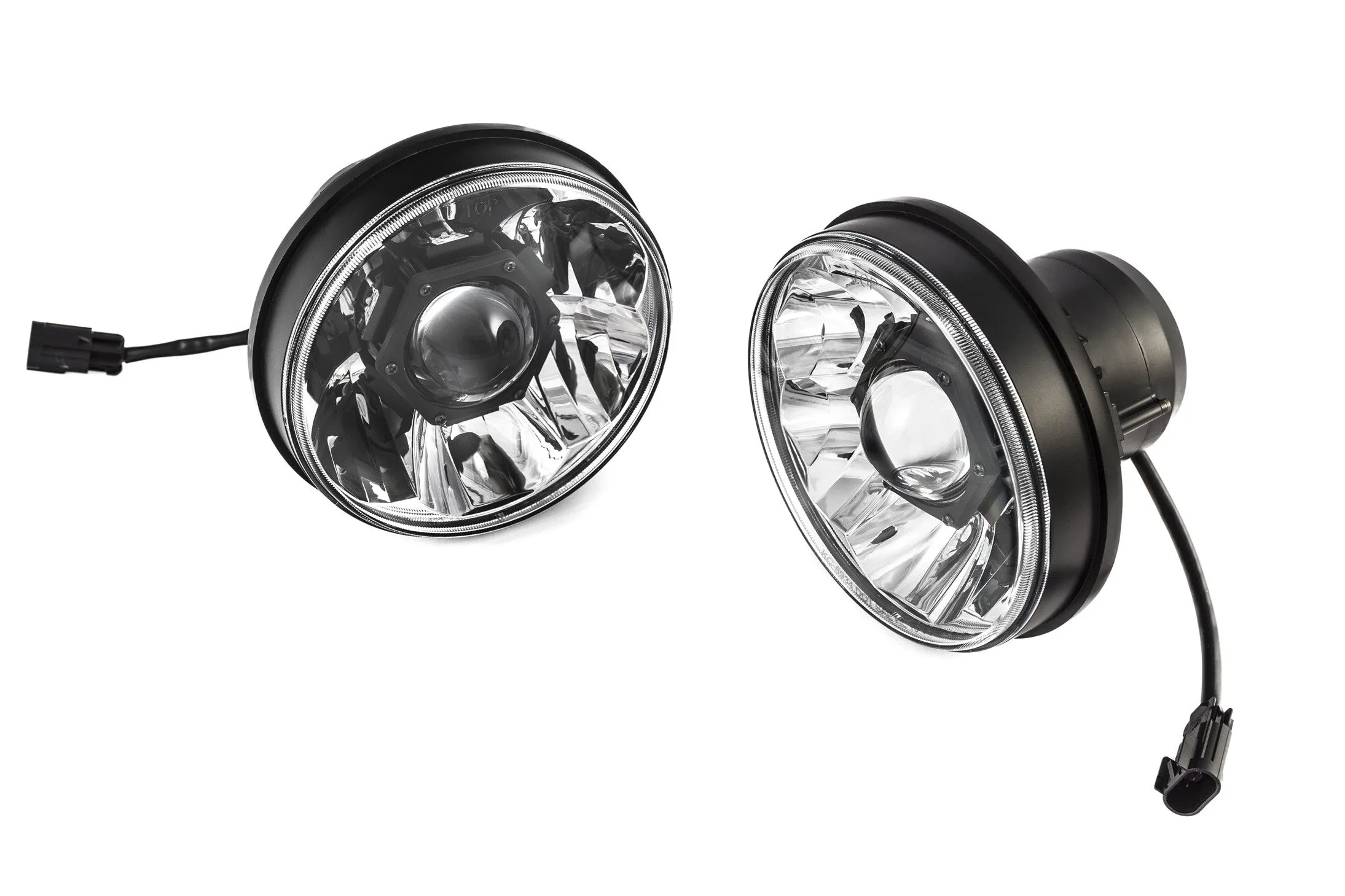

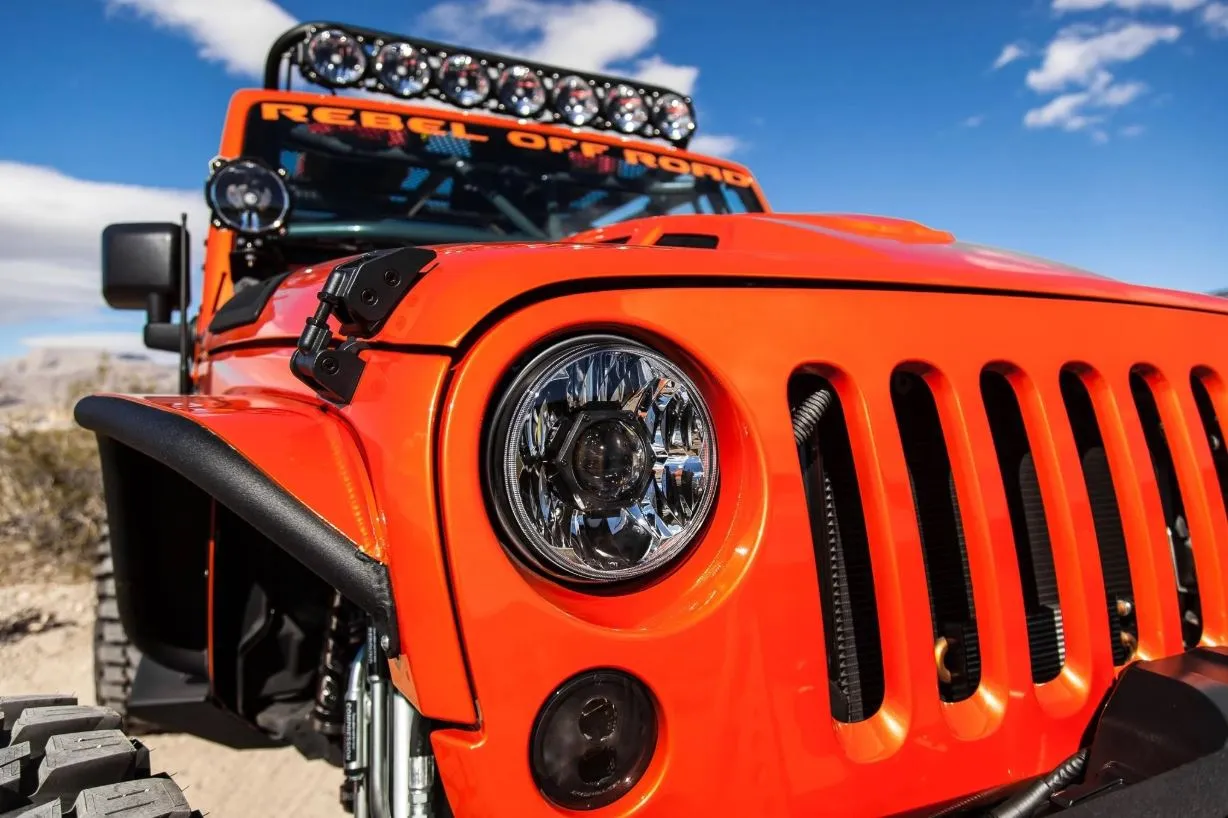

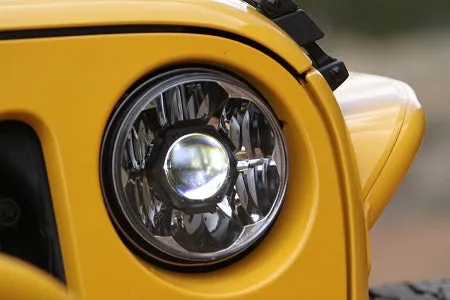

Gravity® LED Pro 7" Headlight DOT Pair Pack System

KC's Gravity® LED Pro 7" Jeep Wrangler JK Headlights feature bright CREE LEDs for DOT low/high beams on 2007-2018 JKs. Diecast aluminum housing and polycarbonate lens for optimal performance. High/Low beams with built-in DRL, and anti-flicker capacitors.

FEATURES

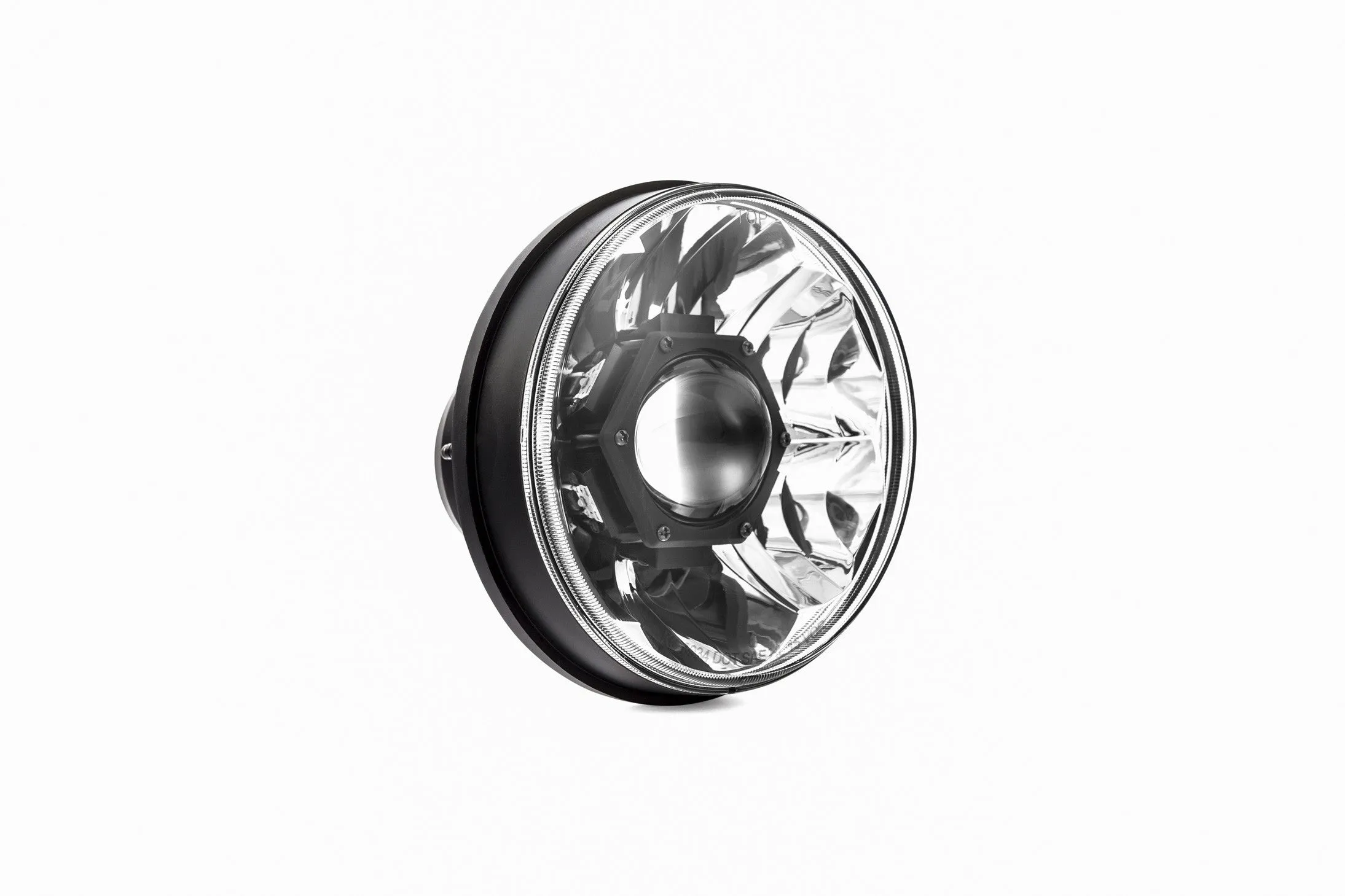

• Gravity® LED Pro 7" Headlight

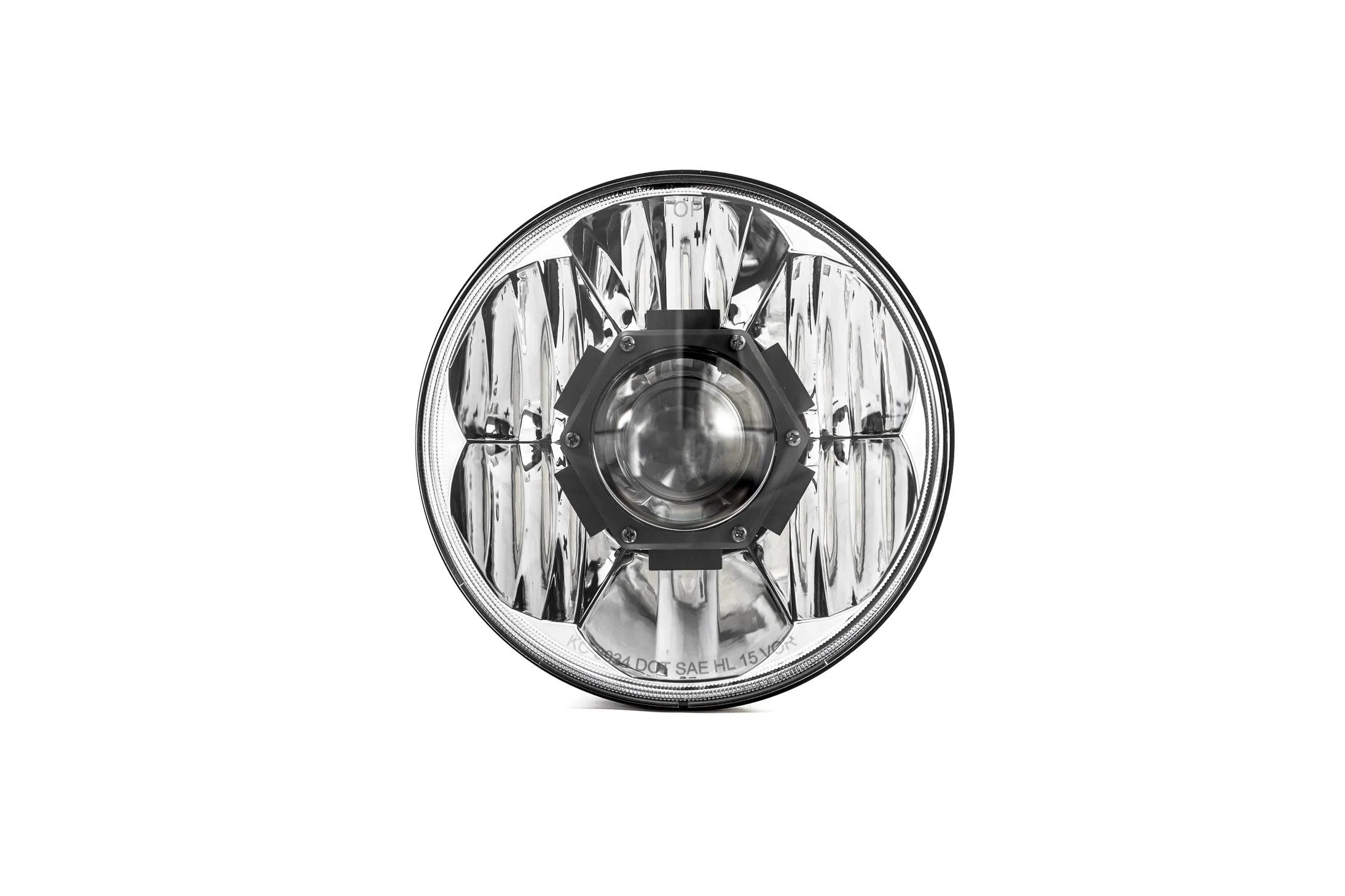

• Patented Gravity® Projector Optics(GPO)
• Hard Coated Polycarbonate Lens
• Precision Die-Cast Aluminum Housing
• DOT Compliant Low and High Beam with built-in Daytime Running Light
• KC Engineered Polished Reflector Optics

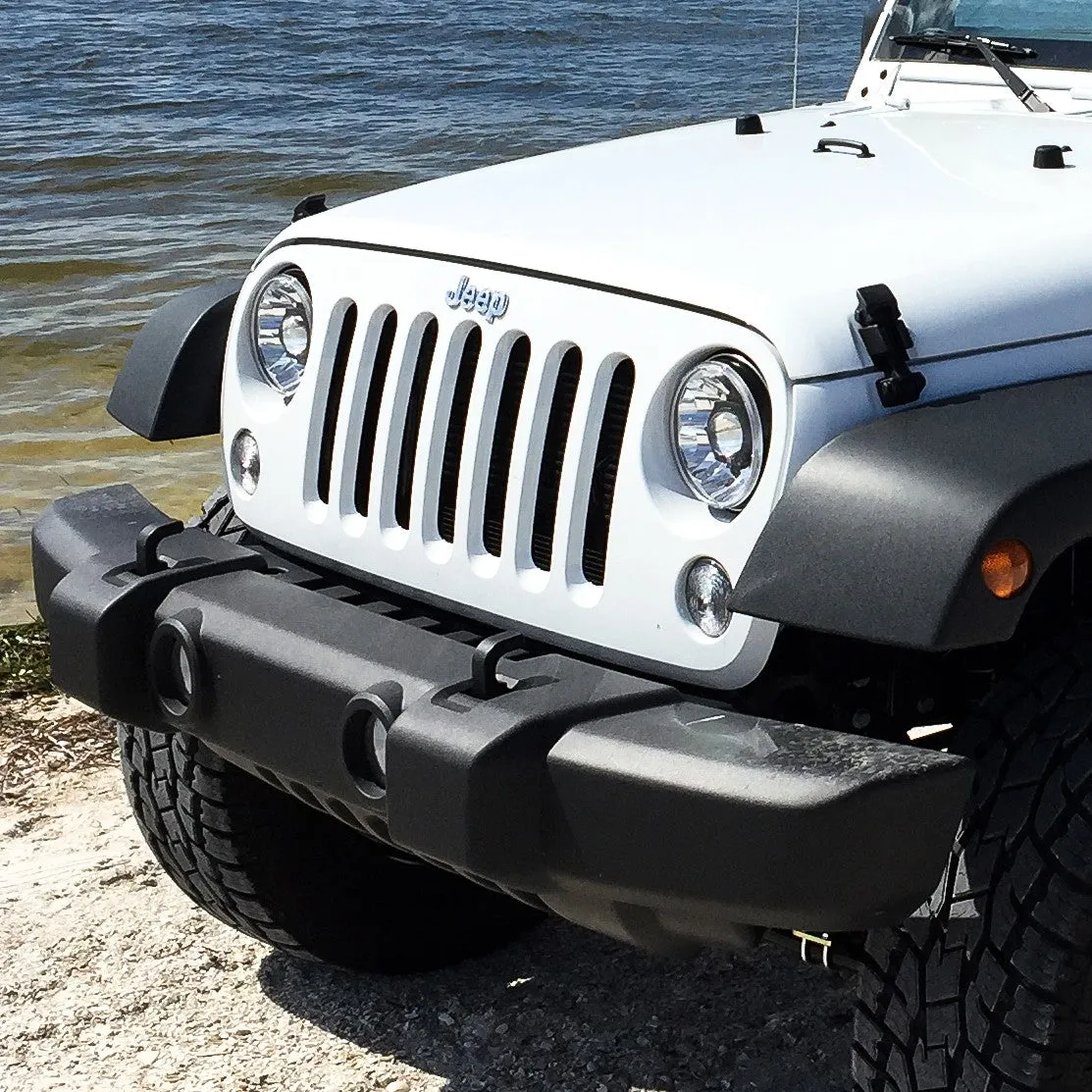

• Plug-n-Play for Jeep JK

Fitment Note:

• Does not fit 2017-2018 Jeep Wrangler JK Rubicon/Sahara editions or Jeeps equipped with factory LED headlights
• Lens depth will not fit in certain aftermarket grilles, such as the "Angry Eye"

LIGHT PERFORMANCE (PER LIGHT)

• Raw Lumens: Low- 2,967 lm, High- 2,575 lm, DRL- 386 lm
• Lux @ 10 Meters: Low- 400 lx, High- 700 lx
• Candela: Low- 40,000 cd, High- 70,000 cd
• Beam Distance: Low- 400m, High- 529m

SPECIFICATIONS (PER LIGHT)

• Wattage: Low: 18W, High: 25W
• LED Bulb: CREE: XPL/XPG2
• Color Temp: 5000K
• Amp Draw: 1.88A
• Voltage: 9V-18V
• IP Rating: IP68
• Product Dimensions: 6.96" x 5.098"

Gravity® EXTREME OUTPUT AND EFFICIENCY

The Gravity® LED Pro 7" headlight uses KC's patented Gravity® Projector Optic (GPO). Utilizing this proprietary projector lens technology along with a GRD LED core, KC engineers were able to deliver a more controlled beam pattern while setting new industry standards in light shape, clarity and output.

HIGH-PERFORMANCE REFLECTOR OPTICS

The Gravity® LED Pro 7" Headlight features KC's patented Gravity GRD technology, which is engineered to direct every lumen from powerful LEDs to precision reflector optics.

HIGH/LOW/DRL BEAM FUNCTION

High/Low beams as well as DRL functionality comes factory installed in this KC projector headlight while greatly Improving visibility and clarity over your factory Jeep JK headlights.

DESIGNED FOR DURABILITY

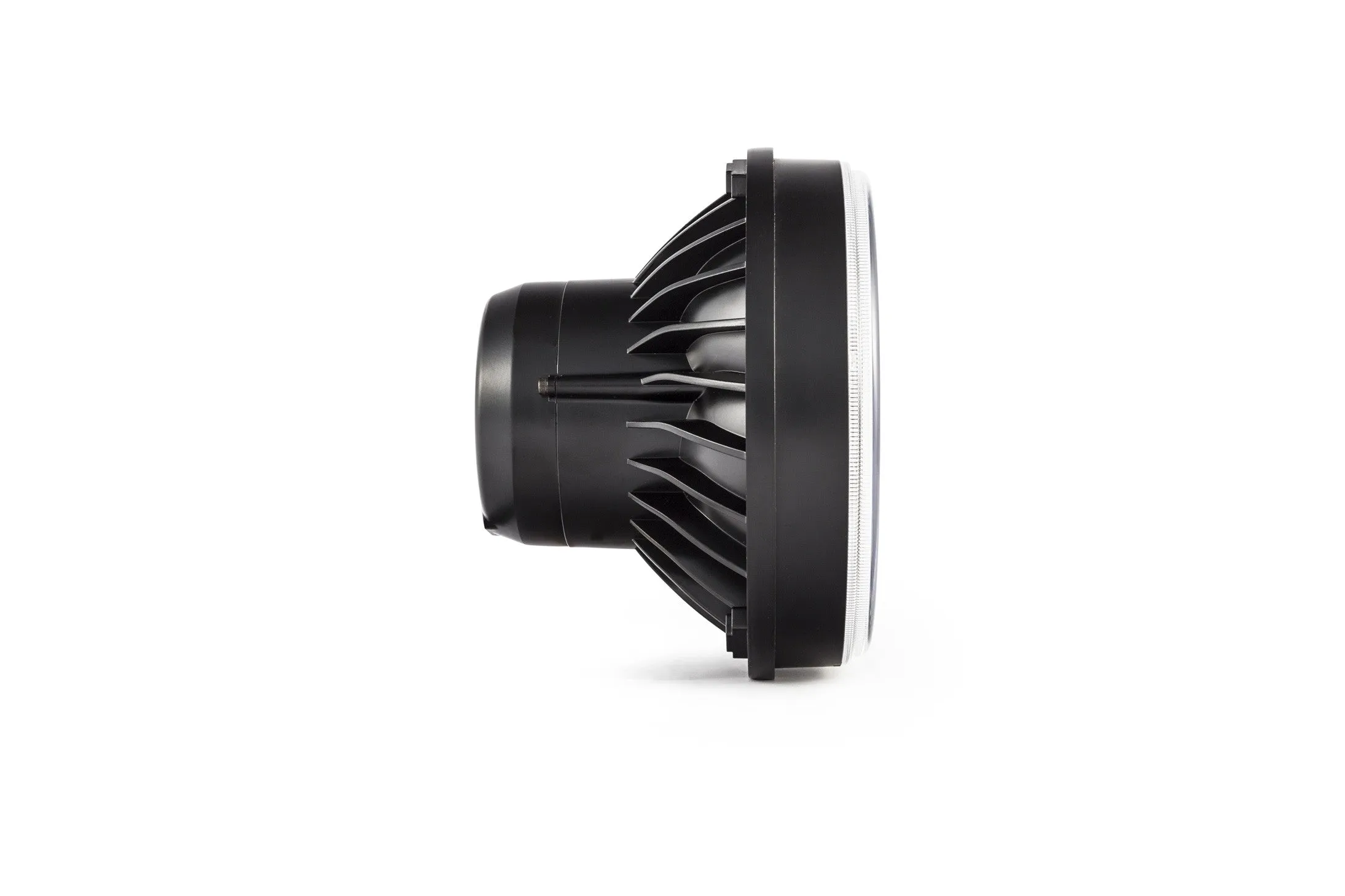

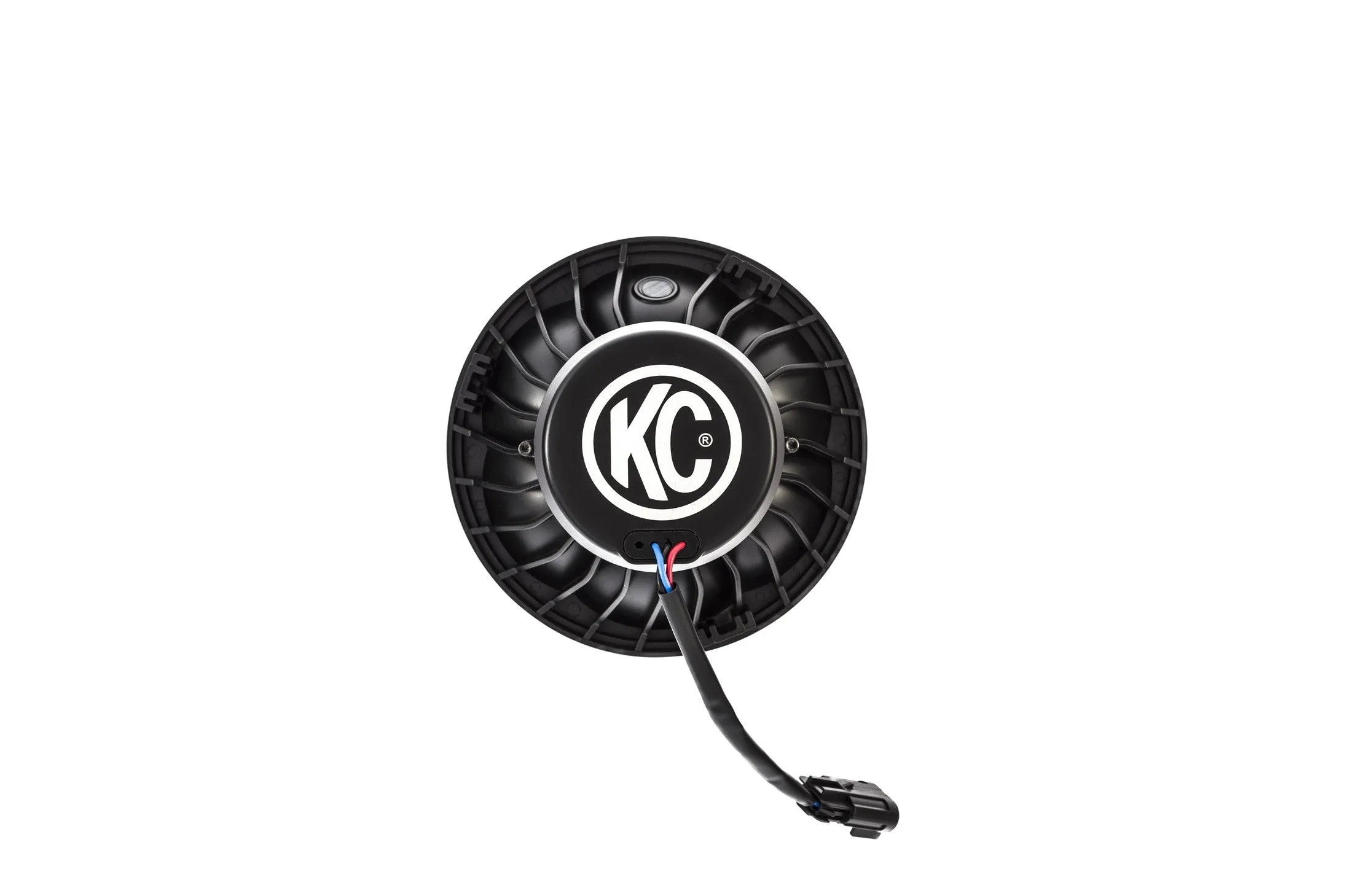

Surrounding our high-performance Pro 7" Headlight is a durable die-cast housing, and a hard coated Polycarbonate lens, which is designed to tolerate the harshest climates, terrains and conditions.
