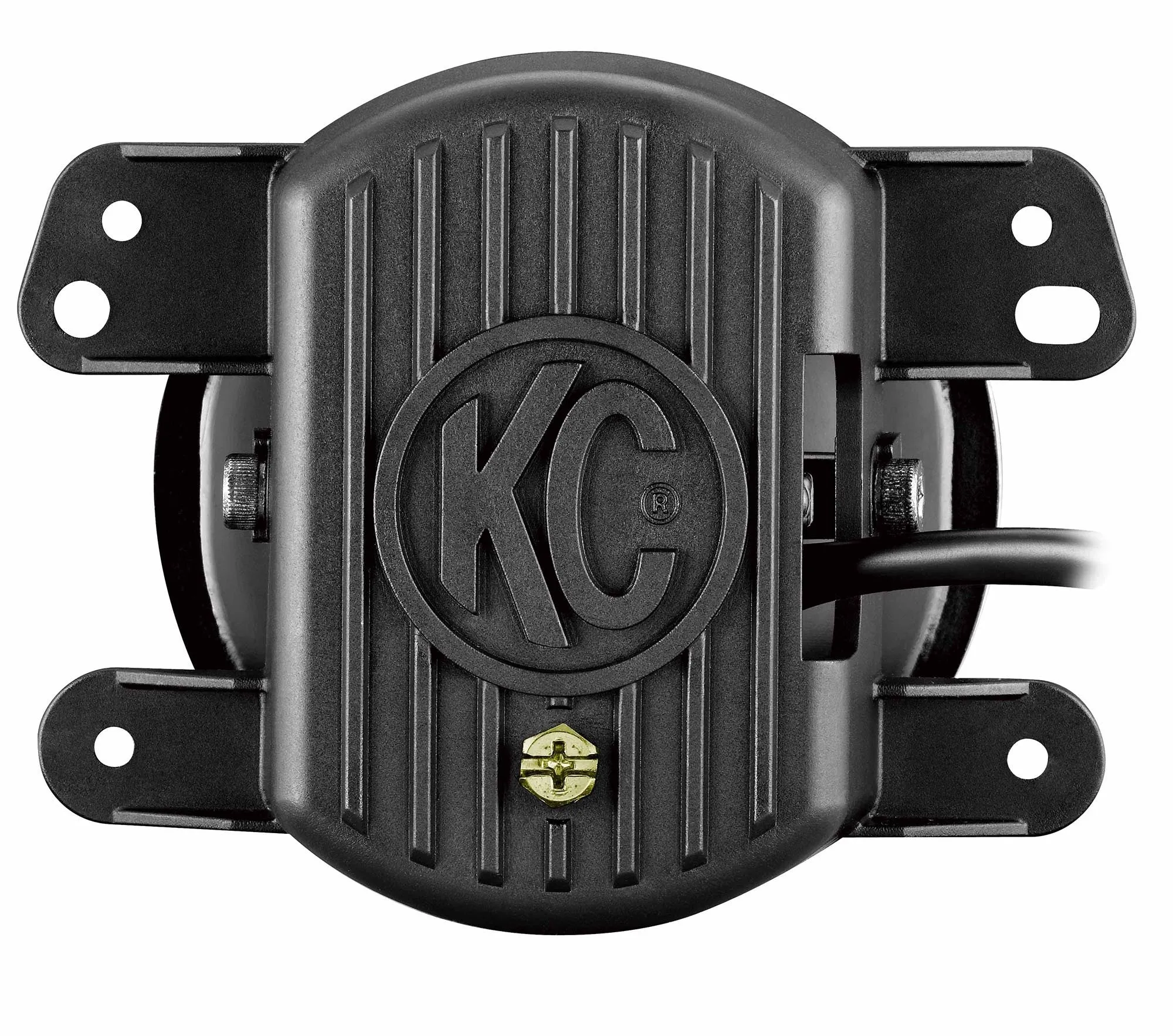

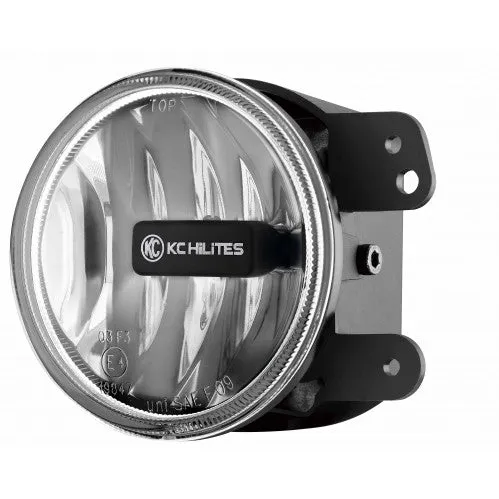

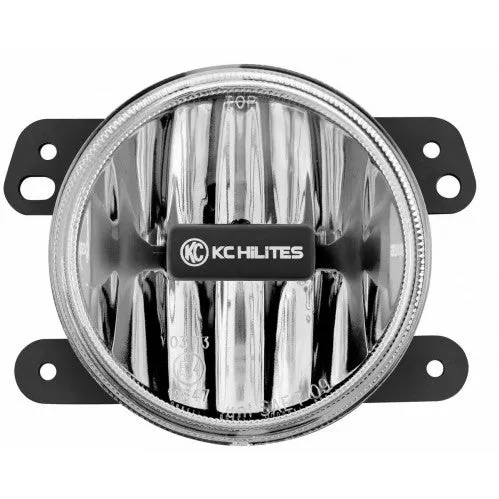

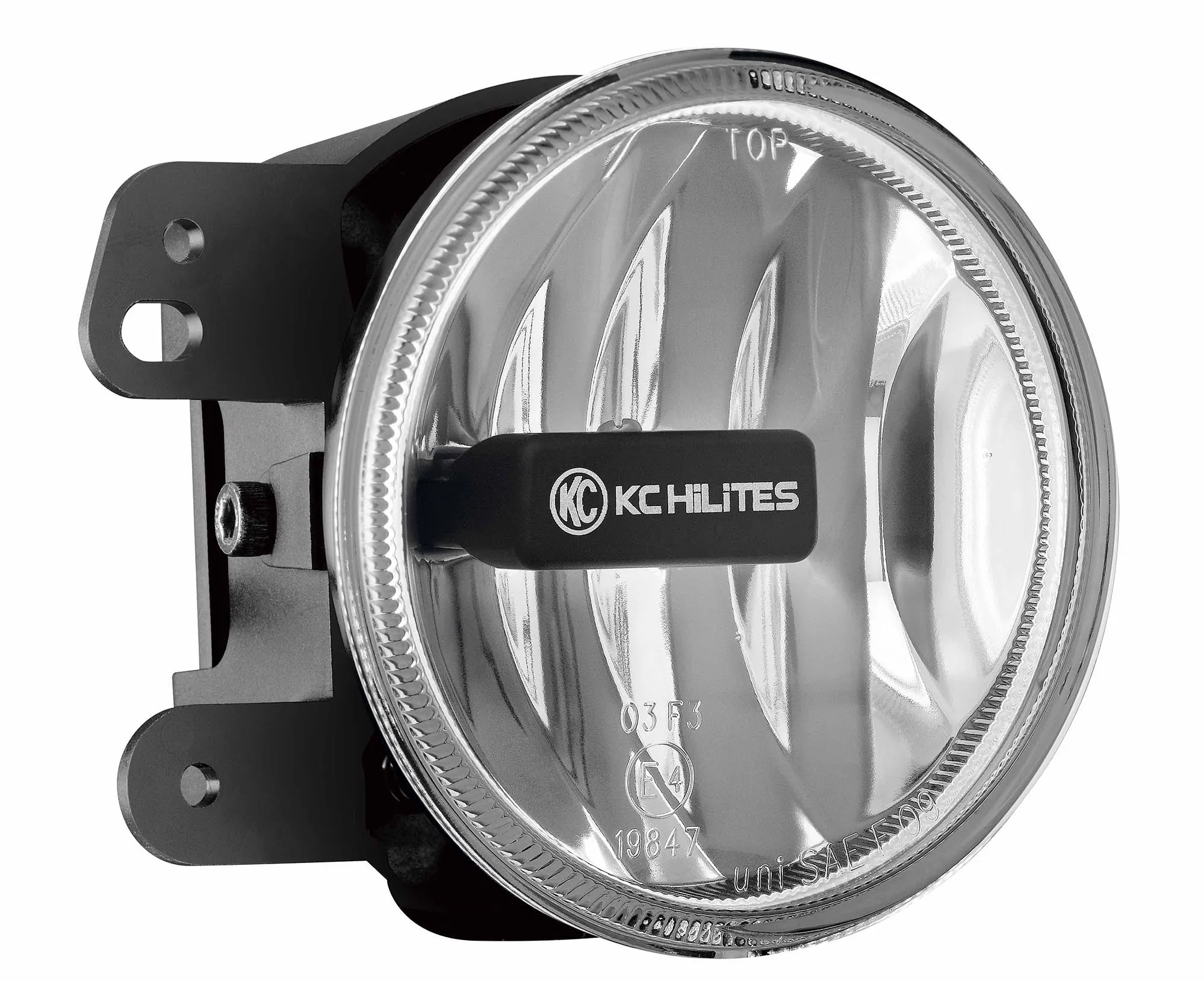

Gravity® LED G4 Jeep JK Fog Pair Pack System

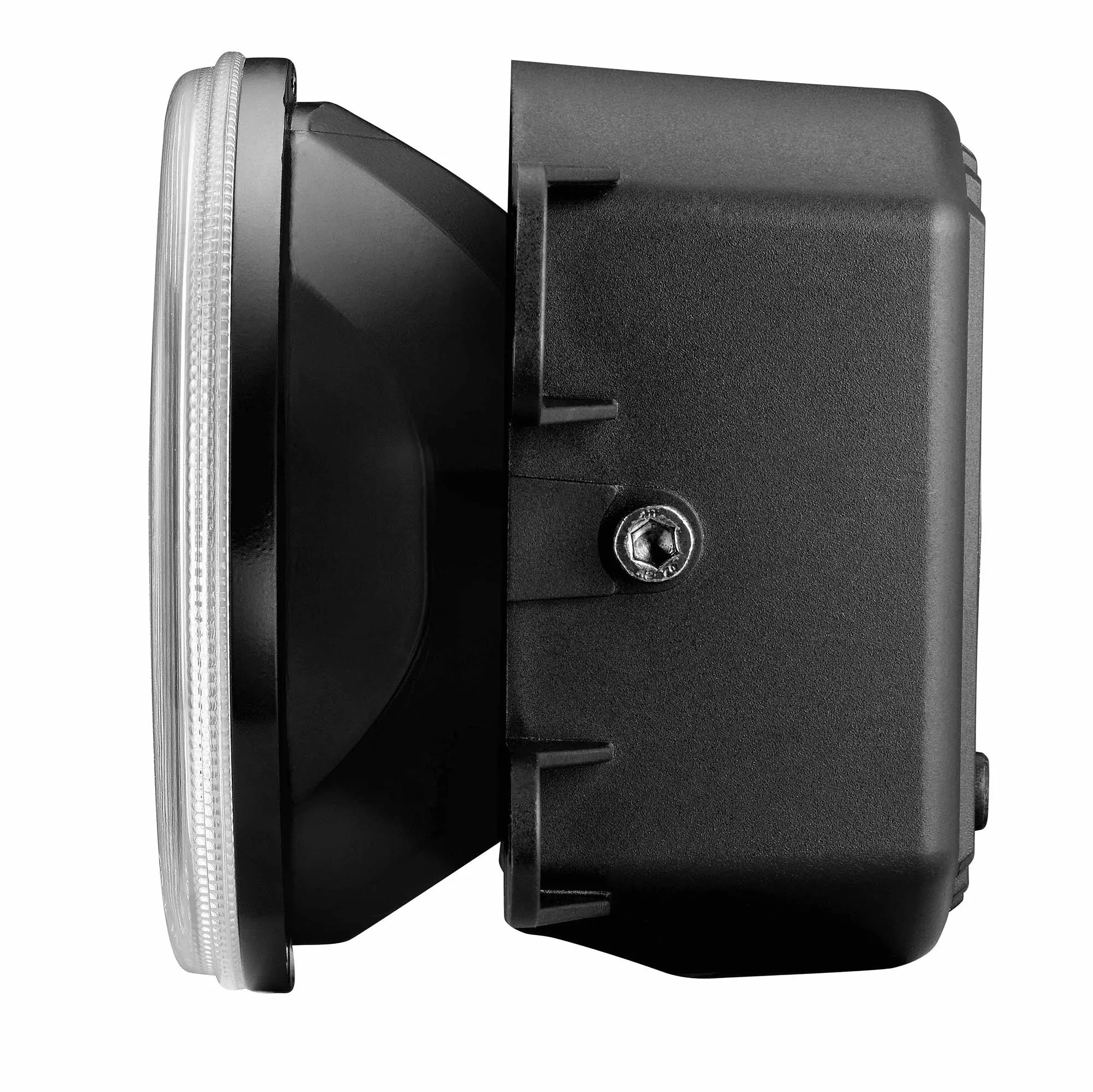

KC HiLiTES 4" Gravity LED Replacement Fog Light feature bright CREE LEDs in a Street Legal Fog Beam pattern. Magnesium housing and shatter resistant polycarbonate lens. Pair includes factory wire connectors(excludes 2007-2009 JK models) and bracket for easy mounting on 2007-2018 Jeep Wrangler JKs.

*Disclaimer: KC Jeep Wrangler JK Fog Light Systems are not compatible with 2013 Jeep Wrangler JK Anniversary Edition and 2015-2016 Rubicon Hard Rock Edition Models.

FEATURES

• (2) 10W 4" Gravity® LED Fog Lights
• Lightweight Magnesium Housing for Maximum Heat Dissipation
• Street Legal 2007-2018 Jeep Wrangler JK Application (Excludes 2013 Anniversary Edition)
• OE Factory Connectors for Plug-N-Play Install on 2010-2018 Jeep Wrangler JK (Excludes 2007-2009 Models)
• Clear or Amber LED
• Shatter Resistant Polycarbonate Lens
• Fog Beam Pattern (SAE and ECE Street Legal)

LIGHT PERFORMANCE (PER LIGHT)

• Raw Lumens: 866 lm
• Compliance: Fog beam meets SAE J583 and ECE-R19 Street Legal
• Lux @ 10 Meters: 150 lx
• Candela: 15,000 cd
• Beam Distance (Meters): 245m

SPECIFICATIONS(PER LIGHT)

• Wattage: 10W per light
• LED Source: CREE LED
• Color Temperature: 5000K
• Amp Draw: .74A
• Voltage: 9V-32V
• IP Rating: IP69
• Product Dimensions: 3.94" x 3.94" x 3.44"

Parts Included:

• (2) 10W 4" Gravity® G4 LED Fog lights

Gravity®EXTREME OUTPUT AND EFFICIENCY

The 4" Gravity® LED Fog Lights are powered by KC's patented Gravity® Reflective Diode (GRD) and optical reflectors to deliver an incredible 150 lx @ 10m using only .74A per light. Our patented GRD (Gravity® Reflective Diode) system aims the LEDs into the precision reflectors to capture all the light and project it forward. This results in a more controlled and far reaching beam pattern than ever before.

STREET LEGAL FOG BEAM PATTERN AND ADVANTAGES

Fog Beam: Provides a low, wide angle light pattern that increases short-range visibility. Ideal pattern for lighting pathways close to ground in low visibility conditions like dust, fog, snow and rain.

ADJUSTABLE MOUNTING FOR ACCURACY AND PRECISION

KC's Innovative adjustable mount allows users to easily adjust the aiming of lights horizontally for an optimum and consistent beam angle. KC's OE mounting system bolts directly up to OE bumper locations on 2007-2017 Jeep JKs.

STRENGTH & DURABILITY

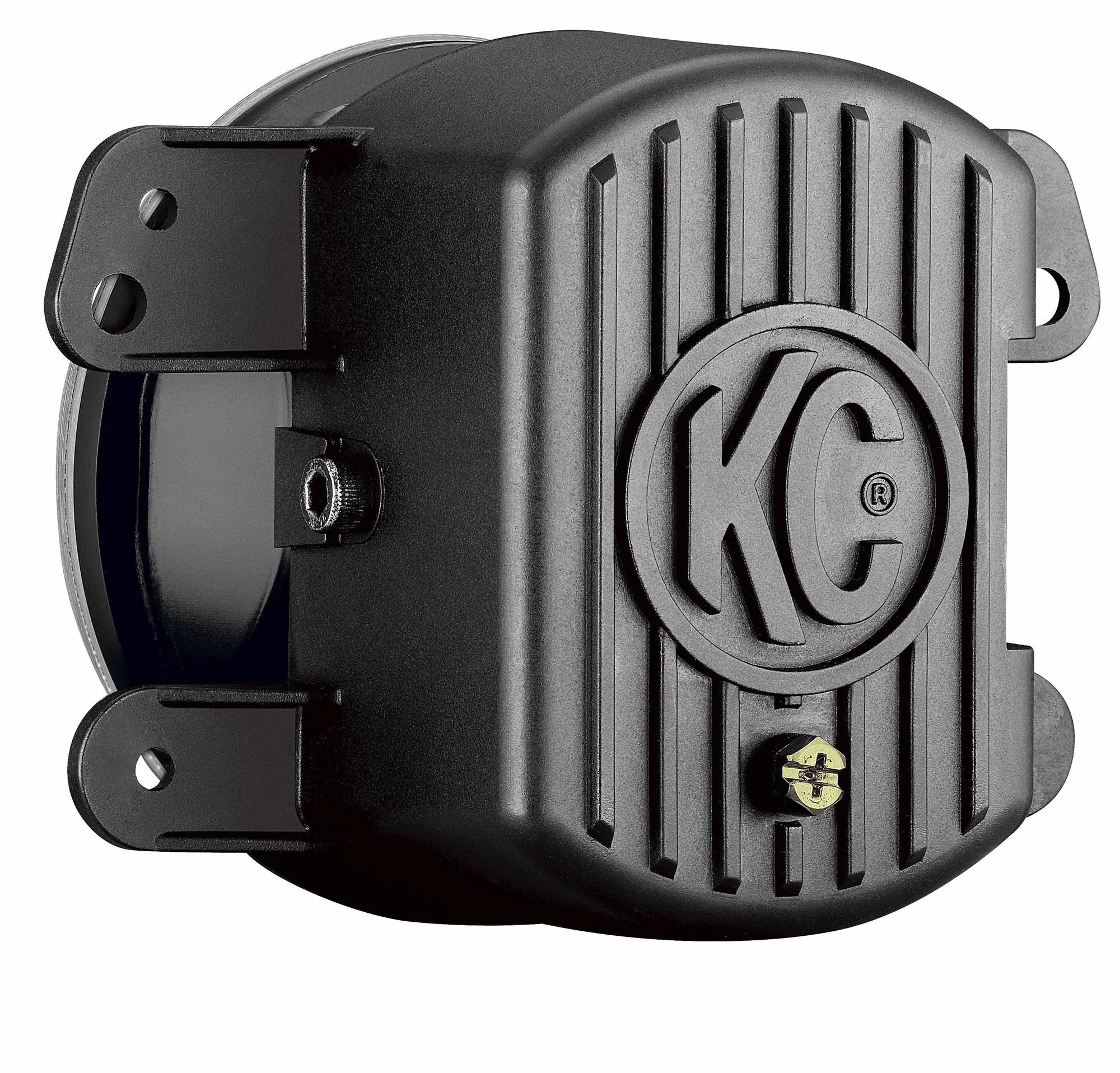

Constructed from an IP69 rated lightweight magnesium housing and shatter resistant polycarbonate lens creating a fully self contained LED light housing.
