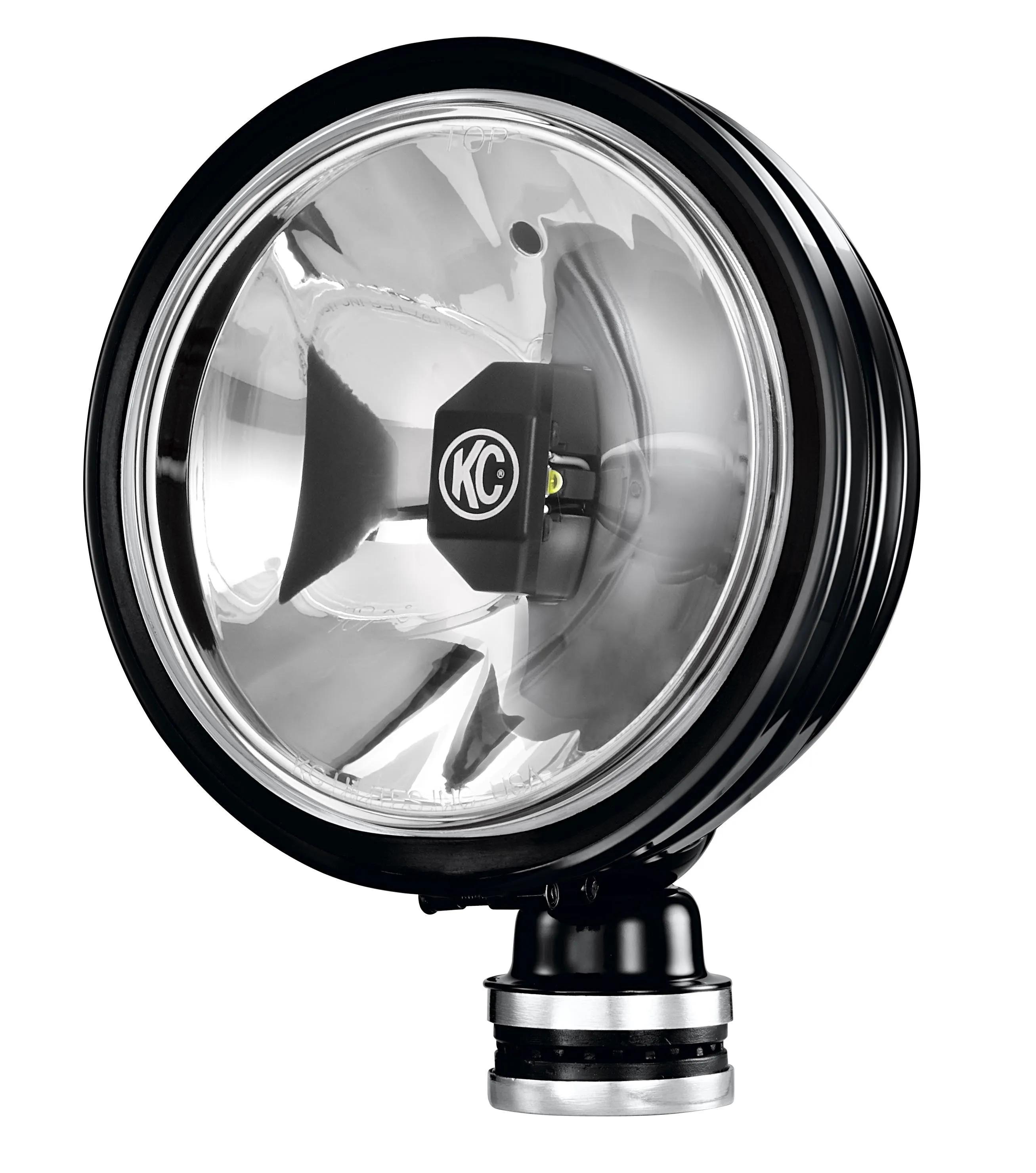

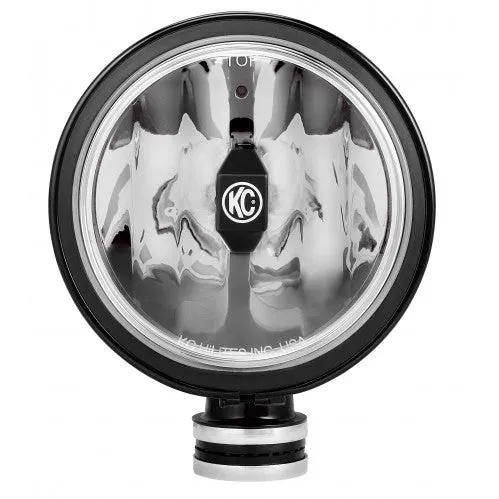

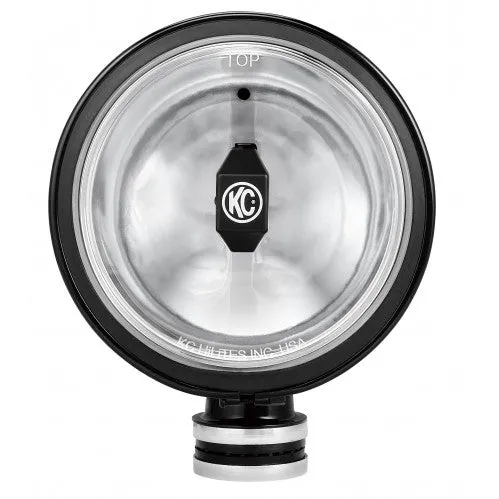

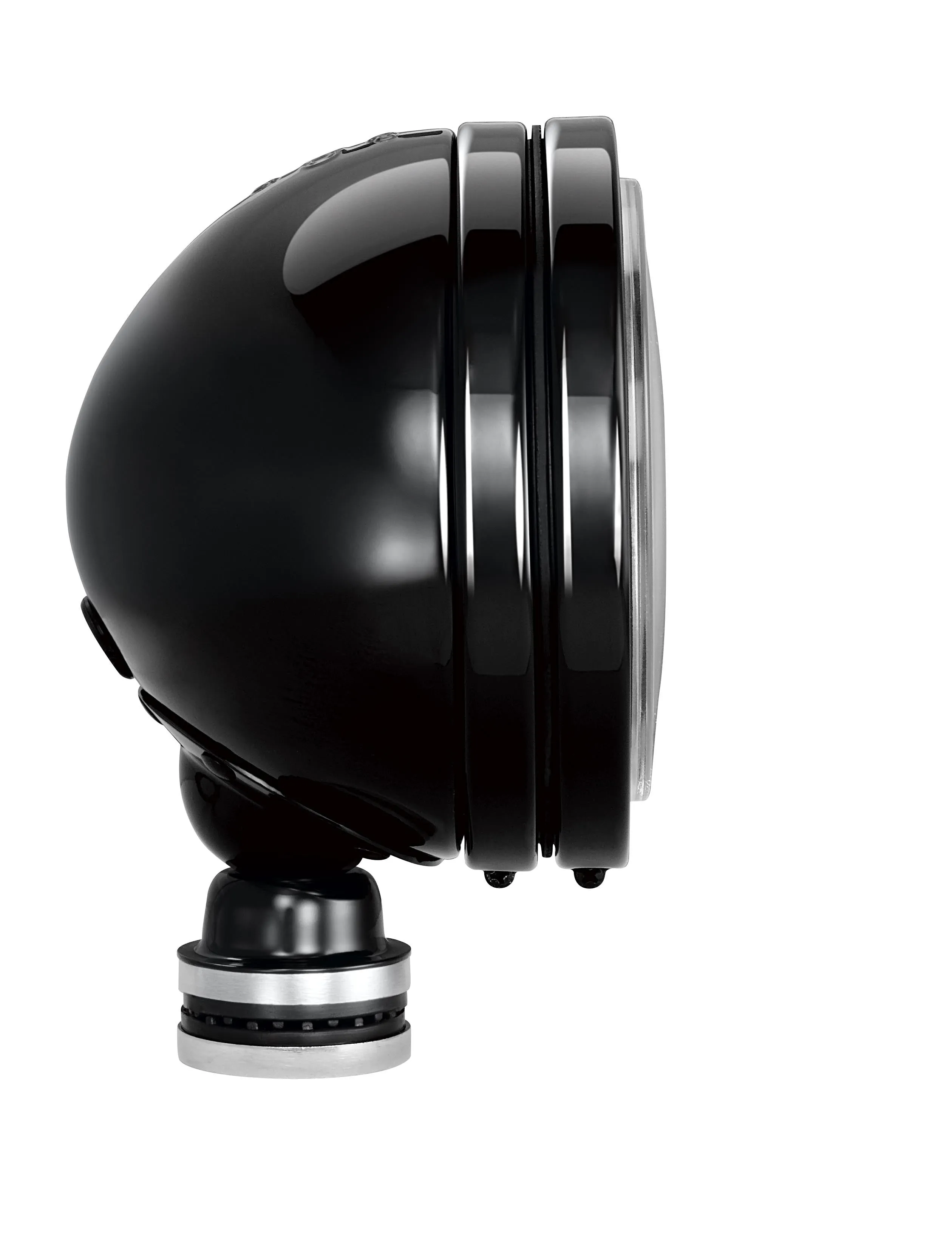

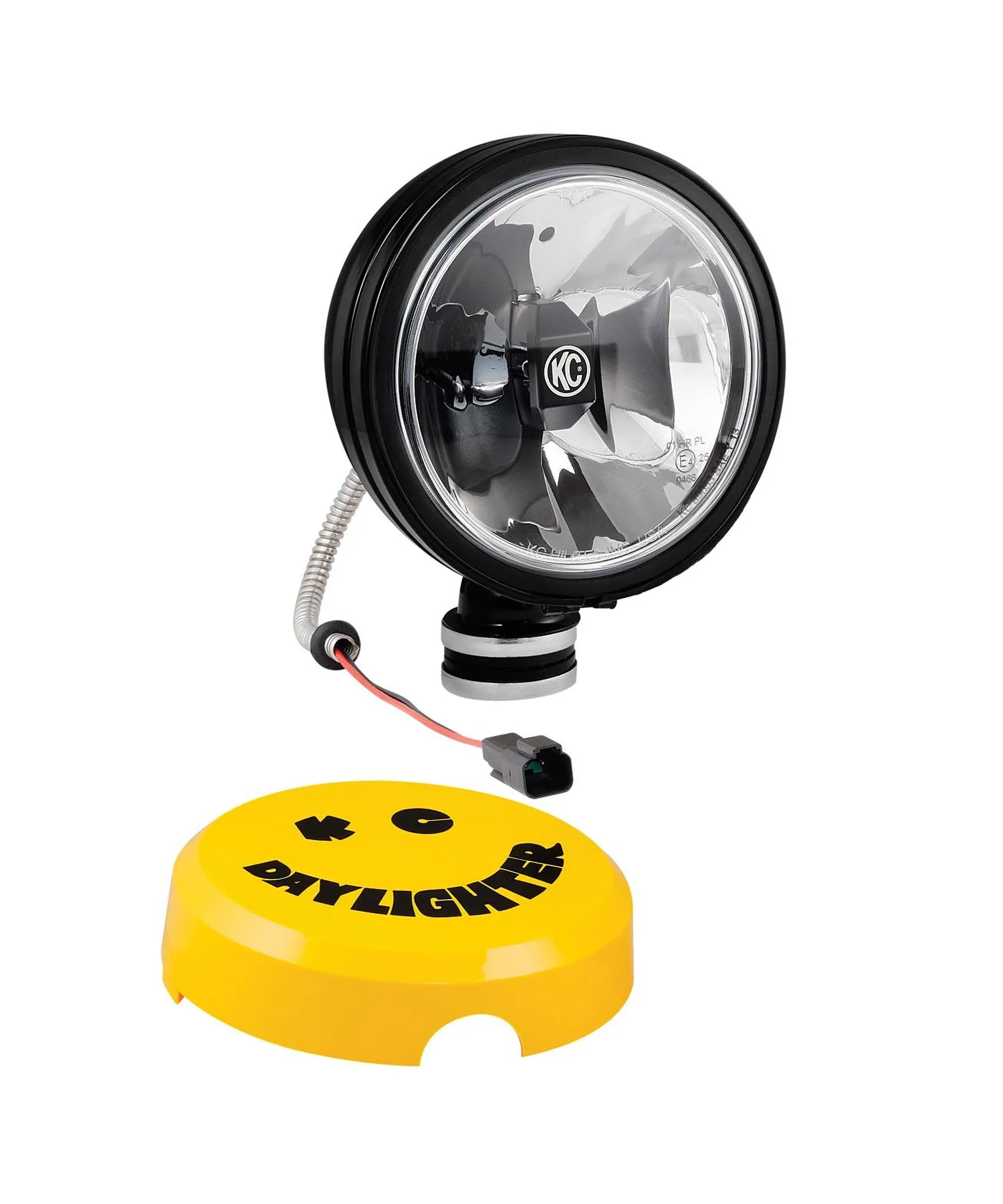

6" Daylighter w/ Gravity® LED G6 Single Light
KC HiLites 6" Gravity LED Daylighter feature bright CREE LEDs in a spot or SAE legal drive beam pattern. Rugged steel housing in Black, Chrome or Stainless finishes and polycarbonate lens with flexible base for easy, accurate aiming.
FEATURES
- 20W Gravity® LED G6 Optical Inserts
- Black or Stainless Steel housings
- Hard Coated Polycarbonate Lens
- Spot Beam or Driving Beam (SAE and ECE) Patterns
LIGHT PERFORMANCE (PER LIGHT)
- Raw Lumens: Spot- 2,300 lm , Driving- 2,300 lm
- Compliance: Driving beam meets SAE J581 and ECE-R112
- Lux @ 10 Meters: Spot- 2,150 lx , Driving- 1,310 lx
- Candela: Spot- 215,000 cd , Driving- 131,000 cd
- Beam Distance (Meters): Spot- 972m, Driving- 724m
SPECIFICATIONS (PER LIGHT)
- Wattage: 20W
- LED Bulb: CREE XPL HD LED
- Amp Draw: 1.63A
- Voltage: 9V-32V
- IP Rating: IP68
- Product Dimensions: 6.22" x 8.42" x 5.38"
Gravity® EXTREME OUTPUT AND EFFICIENCY
Gravity® 6" Daylighter LEDs are powered by our G6 LED optical inserts to deliver 2,150 lx @ 10m using only 1.63A per light. KC's patented Gravity® Reflective Diode system aims LEDs into precision reflectors, capturing all light to project it forward.
AVAILABLE BEAM PATTERN AND ADVANTAGES
Spot Beam: Provides focused bright light for maximum forward distance and high speed visibility.
Driving Beam: SAE and ECE street legal beams provide added peripheral visibility while reaching further than stock lights.
ADJUSTABLE MOUNTING FOR ACCURACY AND PRECISION
Our time-tested Daylighter Flexible Base system is resilient and allows for easy light aiming for beam stability and consistency.
STRENGTH & DURABILITY
Race-proven steel housing combined with IP68 rated Gravity® G6 LED optical inserts for extreme strength and durability to tolerate harsh terrains.
