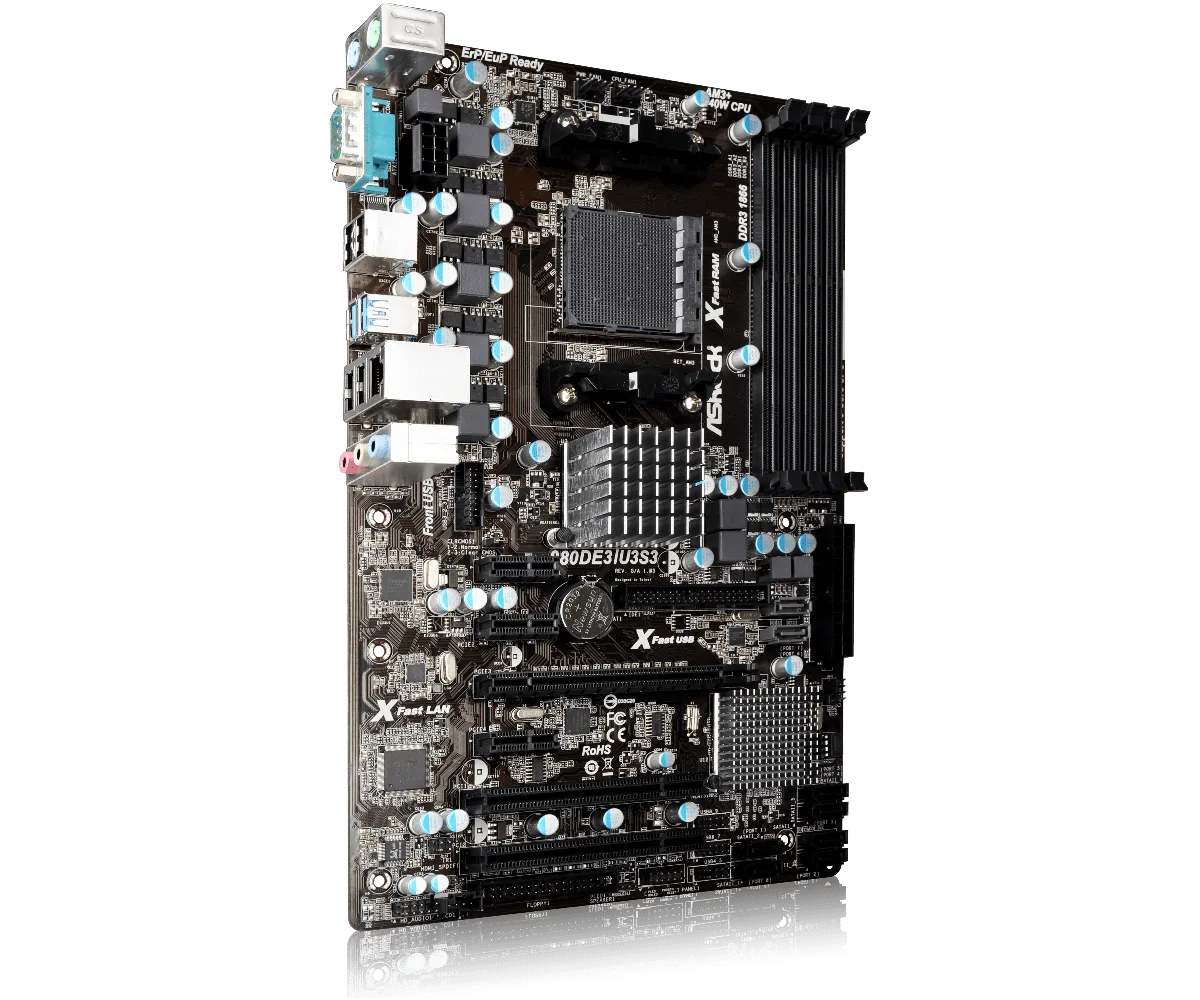

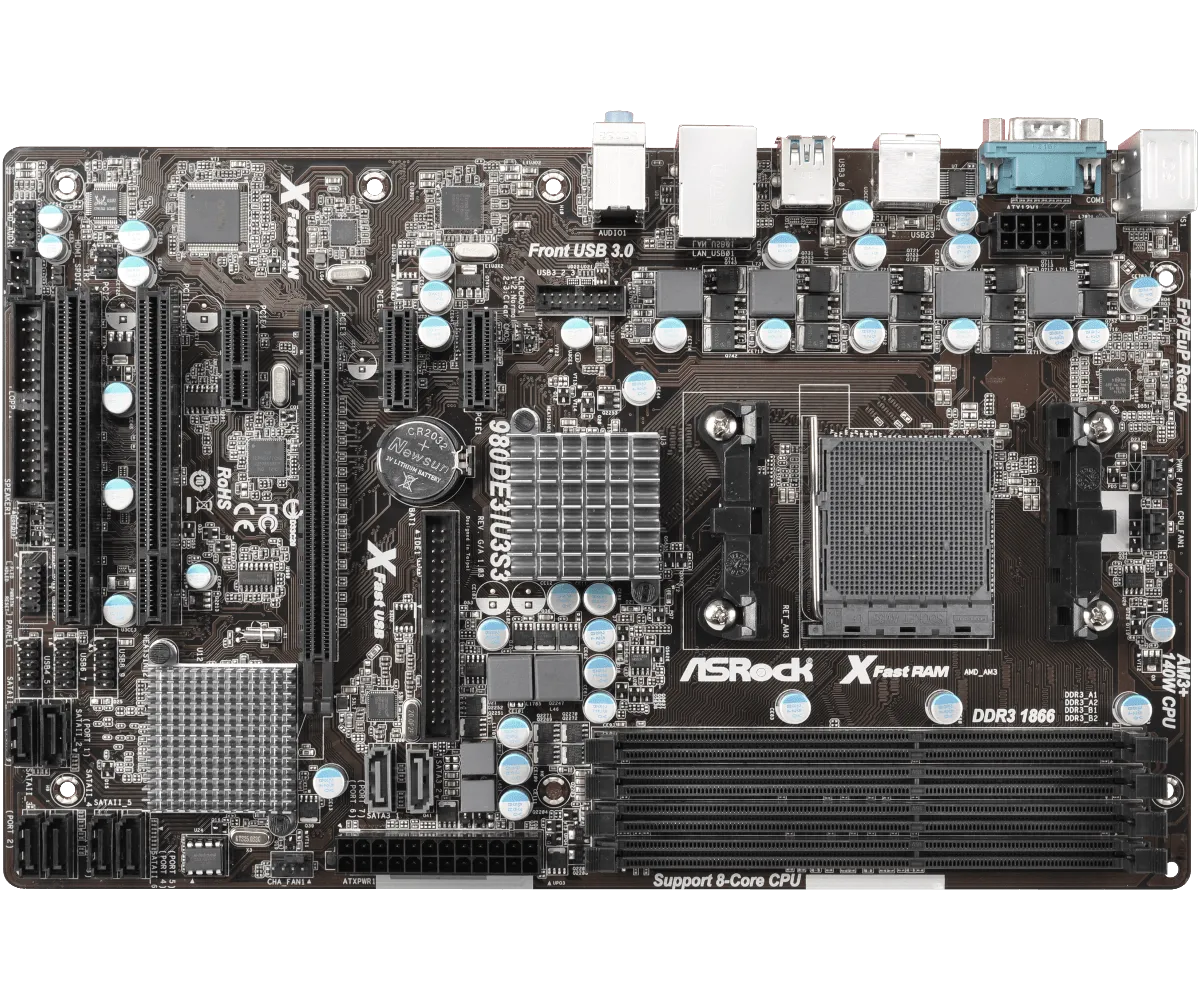

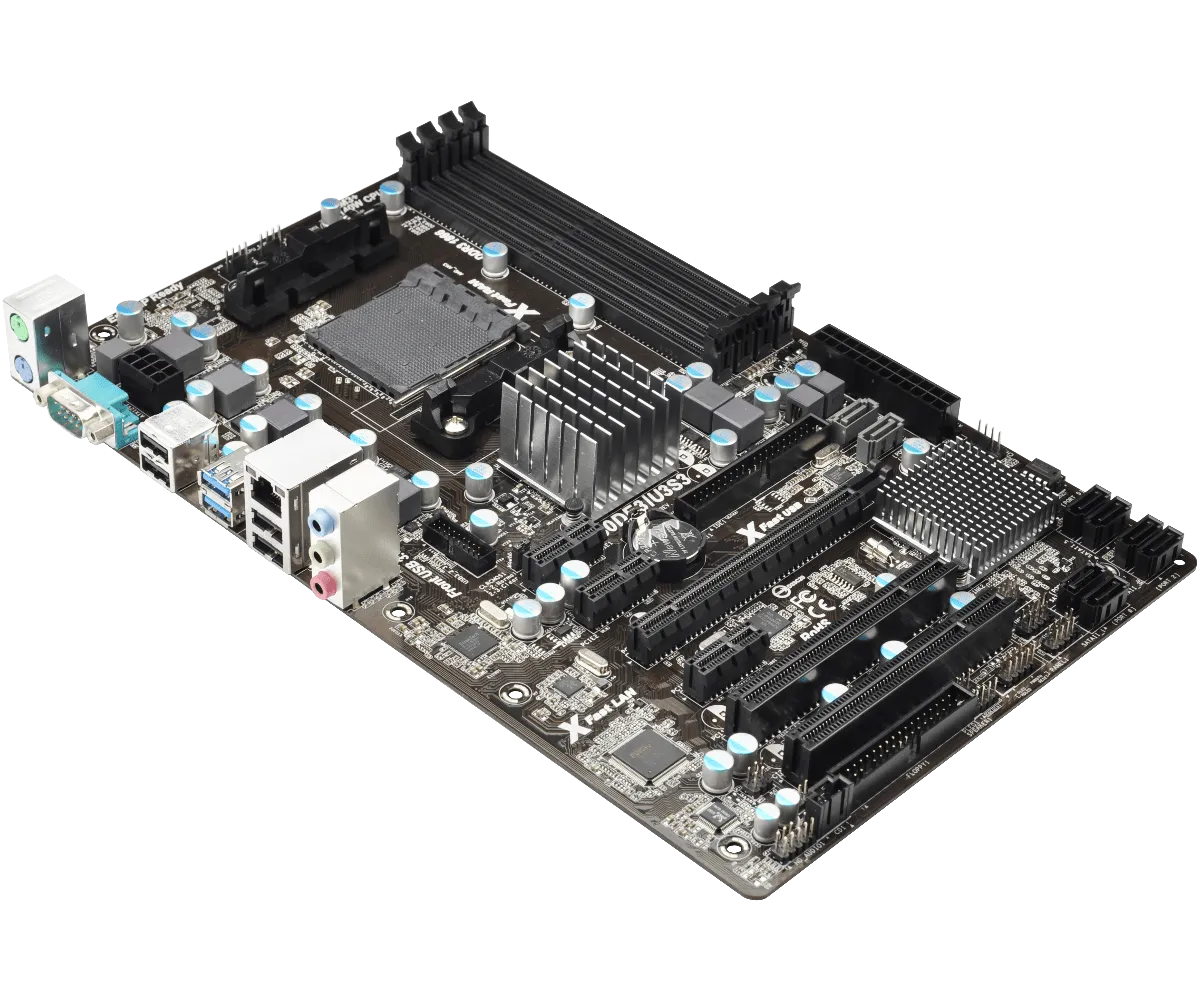

980DE3/U3S3

Condition:Refurbished (24 hours test. And equipped with I / O shield.)

• 100% All Solid Capacitor design
• Supports AM3 Processor, 8-Core CPU
• Supports Digi Power
• Supports Dual Channel DDR3 1866(OC)
• 1 x PCIe 2.0 x16, 3 x PCIe 2.0 x1
• 4 x USB 3.1 Gen1, 2 x SATA2
• 5.1 CH HD Audio (Realtek ALC662 Audio Codec)
• Supports ASRock X-Boost, XFast 555, App Charger
• Free Bundle : CyberLink MediaEspresso 6.5 Trial, Google Chrome Browser and Toolbar

• CPU
  - Support for Socket AM3 processors
  - Support for Socket AM3 processors: AMD Phenom™ II X6 / X4 / X3 / X2 (except 920 / 940) / Athlon II X4 / X3 / X2 / Sempron processors
  - Supports 8-Core CPU
  - Digi Power Design
  - Supports CPU up to 140W
  - Supports AMD OverDrive™ with ACC feature (Advanced Clock Calibration)
  - Supports AMD's Cool 'n' Quiet Technology
  - FSB 2600 MHz (5.2 GT/s)
  - Supports Untied Overclocking Technology
  - Supports Hyper-Transport 3.0 (HT 3.0) Technology
• Chipset
  - Northbridge: AMD RX881/760G
  - Southbridge: AMD SB710
• Memory
  - Dual Channel DDR3 memory technology
  - 4 x DDR3 DIMM slots
  - Supports DDR3 1866(OC)/1600(OC)/1333/1066/800 non-ECC, un-buffered memory
  - Max. capacity of system memory: 32GB*



  *Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows^® 32-bit OS. For Windows^® 64-bit OS with 64-bit CPU, there is no such limitation.
• BIOS
  - 16Mb AMI Legal BIOS
  - Supports "Plug and Play"
  - ACPI 1.1 Compliance Wake Up Events
  - Supports jumperfree
  - SMBIOS 2.3.1 Support
  - CPU, VCCM, NB Voltage Multi-adjustment
• Graphics
  - n/a
• Audio
  - 5.1 CH HD Audio (Realtek ALC662 Audio Codec)
• LAN
  - PCIE x1 Gigabit LAN 10/100/1000 Mb/s
  - Realtek RTL8111E
  - Supports Wake-On-LAN
  - Supports LAN Cable Detection
  - Supports Energy Efficient Ethernet 802.3az
  - Supports PXE
• Slots
  - 1 x PCI Express 2.0 x16 slot (PCIE3 @ x16 mode)
  - 3 x PCI Express 2.0 x1 slots
  - 2 x PCI slots
• Connector
  - 6 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 10 and JBOD), NCQ, AHCI and Hot Plug
  - 2 x SATA3 6.0 Gb/s connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug
  - 1 x ATA133 IDE connector (supports 2 x IDE devices)
  - 1 x Floppy connector
  - 1 x IR header
  - 1 x HDMI_SPDIF header
  - 1 x Power LED header
  - 1 x CPU Fan connector (4-pin)
  - 1 x Chassis Fan connector (4-pin)
  - 1 x Power Fan connector (4-pin)
  - 24 pin ATX power connector
  - 8 pin 12V power connector
  - CD in header
  - Front panel audio connector
  - 3 x USB 2.0 headers (support 6 USB 2.0 ports)
  - 1 x USB 3.1 Gen1 header (supports 2 USB 3.1 Gen1 ports) (Etron EJ188)
• Rear Panel I/O

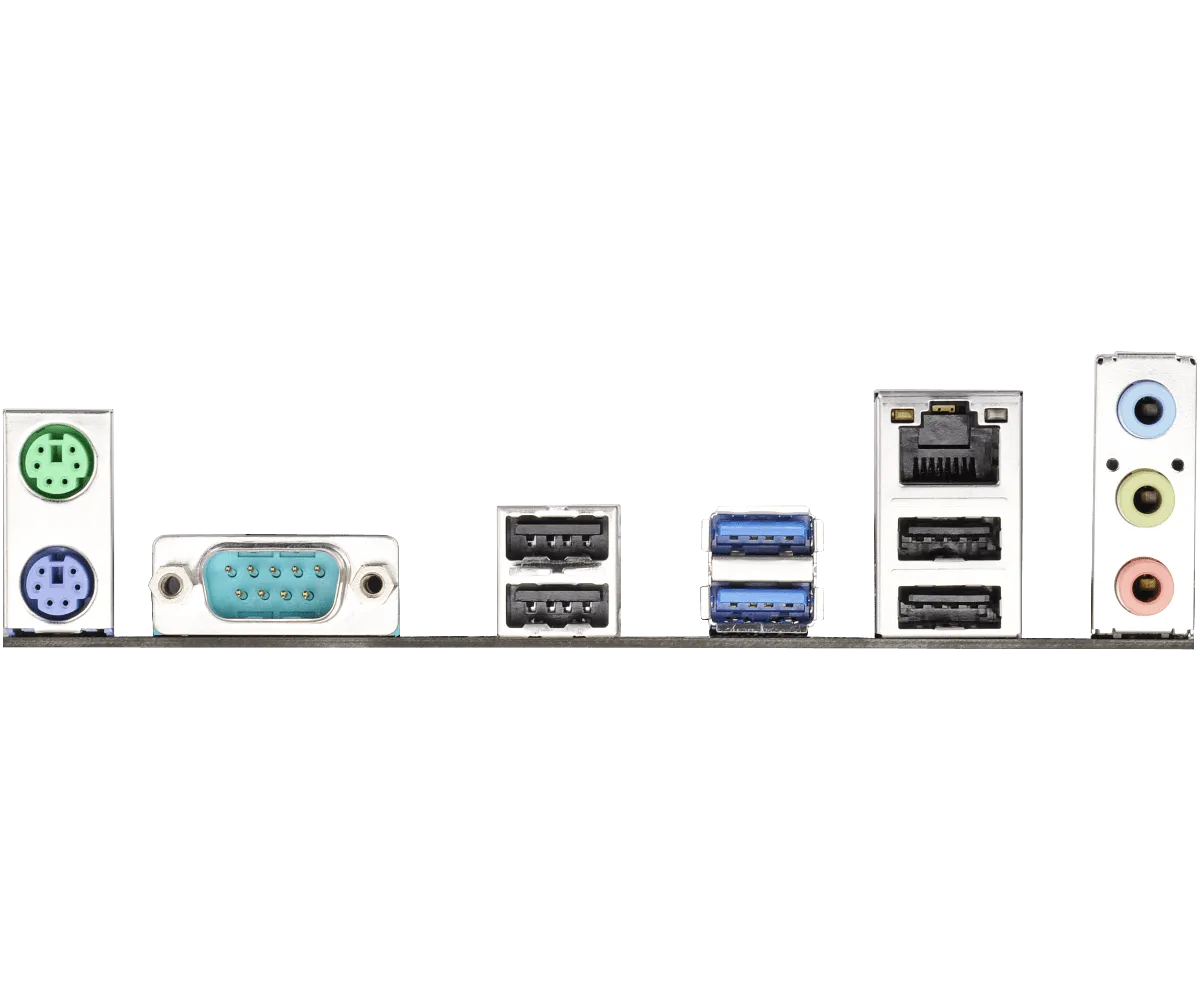

  I/O Panel
  - 1 x PS/2 Mouse Port
  - 1 x PS/2 Keyboard Port
  - 1 x Serial Port: COM1
  - 4 x USB 2.0 Ports
  - 2 x USB 3.1 Gen1 Ports (Etron EJ188)
  - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
  - HD Audio Jack: Line in / Front Speaker / Microphone
• Unique Feature
  - ASRock OC Tuner
  - ASRock Intelligent Energy Saver
  - ASRock Instant Boot
  - ASRock Instant Flash
  - ASRock OC DNA
  - ASRock APP Charger
  - ASRock XFast USB
  - ASRock XFast LAN
  - ASRock XFast RAM
  - ASRock X-Boost
  - Hybrid Booster:
  - CPU Frequency Stepless Control
  - ASRock U-COP
  - Boot Failure Guard (B.F.G.)
• Support CD
  - Drivers, Utilities, AntiVirus Software (Trial Version), CyberLink MediaEspresso 6.5 Trial, Google Chrome Browser and Toolbar
• Accessories
  - Quick Installation Guide, Support CD, I/O Shield
  - 2 x SATA Data Cables
• Hardware Monitor
  - CPU Temperature Sensing
  - Chassis Temperature Sensing
  - CPU, Chassis, Power Fan Tachometer
  - CPU Quiet Fan
  - CPU, Chassis, Power Fan multi-speed control
  - Voltage Monitoring: 12V, 5V, 3.3V, Vcore
• Form Factor
  - ATX Form Factor
  - All Solid Capacitor design
• OS
  - Microsoft^® Windows^® 8 / 8 64-bit / 7 / 7 64-bit / Vista™ / Vista™ 64-bit / XP / XP Media Center / XP 64-bit compliant
• Certifications
  - FCC, CE
  - ErP/EuP Ready (ErP/EuP ready power supply is required)
